Kaco Inverter Monitoring Product Prolog By - China
price: contact company for price
Do you want professional system monitoring and data logging? In that
case KACO proLOG is the high-end solution for your PV system.
It
provides error messages via SMS fax or e-mail as well as remote
monitoring web access and many other features.
Up to 32 devices can be
connected to KACO proLOG via an RS485 interface.
Overview of KACO proLOG functions:
proLOG data access via: blueplanet web Ethernet or Compact flash card.
Number of Inverters that can be connected: 32
Address range for each inverter: 1….
32
Data port for connecting inverter and sensors: B5485
Analog ports for connecting sensors: 1
Digital ports for connecting sensors: 1
Alarm or S O ports: 1
Display options 6 LEDs
Memory: Compact Flash Card
Data port for local analysis: Ethernet
Data storage intervals: 5-60 Minutes
Integrated transformer: Included
KACO proLOG technical specifications
Ambient: 32F-131F
Storage and transportation: -5F-150F
Current consumption: appx.
4W
External power supply: 120 V
Analog inputs (customizable): 0 VDC-10VDC/0mA-20mA (Max load: 40mA/3VDC)/PI 1000 resetance testing
Digital inputs: Low=0VDC-7VDC/High=9VDC-2 4VDC
Digital outputs: Optocoupler outpu(max load: 70VDC/50mA)
Internal battery (for internal clock): Lithium Cell / Type Ll2032
Enclosure: IP21/NEMA 2 (indoor enclosure):
Company Contact:
- Posted By: A&S Power Co.,Ltd
- Phone: 862865376776
- Address: #10 West 2nd Street, Wuhou District, Chengdu , China
- Email:
- Website: http://www.electrical8.com
Published date: June 4, 2013
- Business Description: involved in international trade import export of goods, products, and services
Related listings
-
Schumacher Analog Xi41bGeneral Electronics - A&S Power Co.,Ltd - China - June 4, 2013 - contact company for priceXI41B XI41B 410W INVERTER Detailed Description Converts vehicle power to household power • 410 watts/820 peak watts • 5V USB port – powers most electronic accessories • Easy to use – plugs into vehicle’s accessory outlet or connects directly to batte...
-

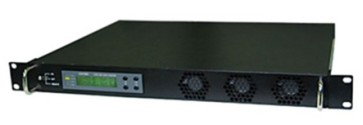

Samlex Rack Mount Inverters Sr1000 148General Electronics - A&S Power Co.,Ltd - China - June 4, 2013 - contact company for price1000 Watt Pure Sine Wave Rackmount Inverter 1000 Watt 48VDC ~ 120VAC 19' Rackmount Inverter 1U. Pure sine wave output(THD <3%) 50/60Hz switch selectable output frequency Input and Output fully isolation design Low power saving mode to conserve ene...
-
