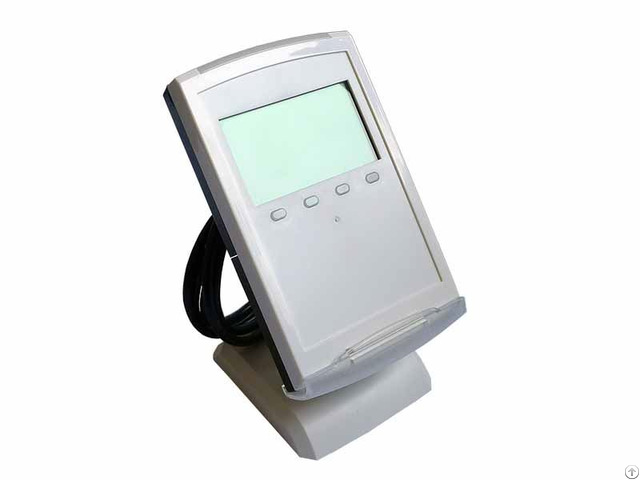

Jinmuyu Mr800ucv Usb Rc531 Vertical Rfid Reader - China

Technical parameters

• PCD: NXP MF RC531, CL RC632

• Working frequency: 13.56MHz

• RF standard: ISO14443A, ISO14443B, ISO15693

• Operating distance: 100mm (MIFARE One, typical)

• SAM card slot: 2 slots, terms ISO7816 (T=0 & T=1, terms PPS, Max.

230400bps)

• Display: 4 LED + LCD (128 * 64 pixel)

• Buzzer: Build in

• Interface: USB PC/SC compatible

• Power supply: DC5V ± 10%

• Power consumption: 0.9W

• Dimension: 142mm * 86mm * 22mm

• Weight: About 200g

• Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)

• Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)

• PC software: PTransWin

• SDK: Base on Windows, free

• Sample code: VC, VB, C++ Builder, DELPHI, Power Builder

• ISP: Terms

• RoHS: By order

Company Contact:

• Posted By: Jinmuyu Electronics Co., Ltd

• Phone: 0086-18201080656

• Address: Room 132, NO. 16 Building, Tianqiaowan, Xinhua North RD., Tongzhou District, Beijing 101101, China., Beijing , Beijing , China

• Email:

• Website: https://www.jinmuyu.com

• Business Description: Jinmuyu is one of the leading 13.56MHz RFID reader manufacturers.

  We build, design and customize products to satisfy a range of customers.

  Our production facilities are certified under ISO/IEC10373-6, EMV2000, EMV2010 and PBOC 2.0 which are recognized all over the world.

  Our products support ISO/IEC14443A, 14443B, 15693 and ISO7816(T=0, 1) protocols and also support MIFARE 1K, MIFARE 4K, FM11RF08, Ultralight, Ultralight C, MIFARE Mini, DESFire, MIFARE Plus; CPU cards(Type A/B, dual-Interface, T=CL); SR176, SRI512, SRI1K, SRI2K, SRI4K, SRIX4K, AT88RF020; NXP I.

  CODE SLI, TI Tag_it HF-I, ST LRI and so on.
