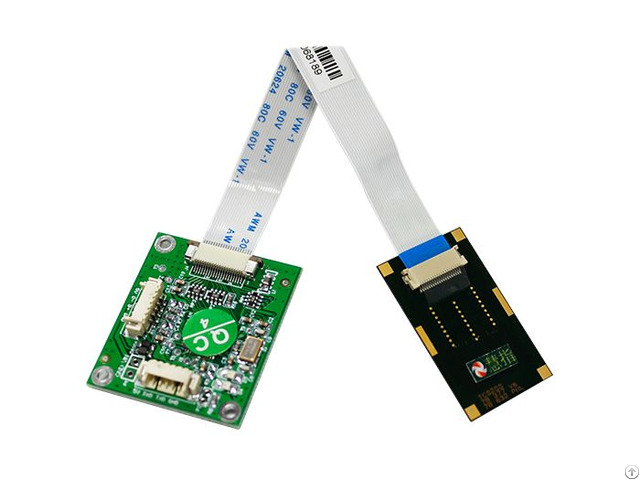

Miaxis SM-205DJR OEM Fingerprint Modules Optical Fingerprint Sensor

Biometric OEM Module

OVERVIEW:

Miaxis SM-205D series fingerprint modules are high-performance standalone fingerprint modules equipped with reliable high-end capacitive sensor and powerful CPU while power efficient.

1: 1 verification time in 300 msec and fast power-on time.

integrated fingerprint module FEATURES: 508 dpi resolution High performance fingerprint module -Adopted Upek sensor TCS2 : Industry's highest quality image for dry&wet fingers 1: 1 verification in 300 msec Live finger detection technology IP 67 rated dust and water protection(platen window) UART&USB multiple interfaces LED control

fingerprint authentication modules SPECIFICATION:

Specification SM-205DJR

CPU 84MHz, Cortex-M4

Flash memory 1MB

(Expandable up to 16MB)

Board Size(L x W x H) 35.0× 30.0× 7.5mm

Sensor Size 33.4 x 20.4 x 2.4mm

Sensor type Capacitive

Sensor name TCS2

Active platen area 10.4 x 14.4mm

Image Size 208 x 288 pixel

Image resolution 508dpi

Grey scale 8 bit (256 levels)

Power-on time ≤200ms

Enrollment time

(Finger touch to template) ≤500ms

1: 1 Verification time ≤300ms

Company Contact:

• Posted By: MIAXIS BIOMETRICS CO., LTD.

• Phone: +86-571-81951610

• Address: 5 Floor, Science&technology Building, East Software Park,No.90,Wensan Rd, Hangzhou,China , zhejiang , China

• Email:

• Website: https://www.miaxis.net/

• Business Description: Founded in 2000 and headquartered in Hangzhou, Miaxis Biometrics Co., Ltd, a subsidiary of XGD.

  COM, is Chinese's industry-leading developer and manufacturer of biometric fingerprint devices and multi-biometrics systems (facial,fingerprint,finge r vein etc) for identity management with core technologies of image processing and world renowned biometric recognition algorithms.

  We provide both advanced capacitive & optical fingerprint scanner and verification terminal series and turnkey biometric solution including smart E-door lock system solution, visiting access control management soluiton, bank teller fingerprint management solution and so on, widely applied to finance, security, government affairs, police, home automation industries.

  Based on over 18 years of industry experience, Miaxis is the pioneer of fingerprint recognition technology in domestic financial industry with more than 50% market share and key vendor of fingerprint scanner for Chinese resident ID card program approved by the ministry of Public Security.
