Integrated Fingerprint Module 508 Dpi Capacitive Sensor - China

Integrated Capacitive Fingerprint Module SM-66H1 Biometric Hardwares

Biometric OEM Module

OVERVIEW:

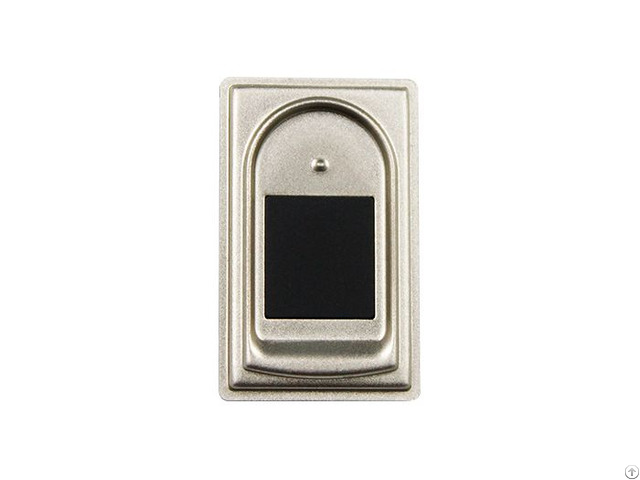

Miaxis SM-66H1 is an Inexpensive, compact, power efficient integrated fingerprint module with adopted capacitive sensor and Miaxis's high speed fingerprint authentication algorithm.

It has all essential components to support fingerprint identification purpose, ideal for Lock and Safe industry.

Integrated Fingerprint Module FEATURES:

●508 dpi capacitive sensor

●Compact design (board size as small as sensor size) for volume-limited applications

●Extra low power-consumption

●Sleep mode current less than 5uA

●Touch wake-up function

Capacitive Fingerprint Module SPECIFICATION: Specification SM-66H1

CPU 200MHz, Cortex-M4F

Flash memory 512KB (Expandable up to 16MB)

Product size(L x W x H) 33.1 x 20.3 x 6.2mm

Sensor type Capacitive

Active platen area 9.6 x 9.6mm

Image Size 192 x 192 pixel

Image resolution 508dpi

Grey scale 8 bit (256 levels)

Power-on time ≤0.2s

Enrollment time

(Finger touch to template) ≤200ms

1: 1 Verification time ≤200ms
