Ingke Yku 8109enl 100 Percent Cross 615008137421 Through Hole Tab Up Rj45 Jack Modular Connector 8p - China
price: 0.20 Dollar US$

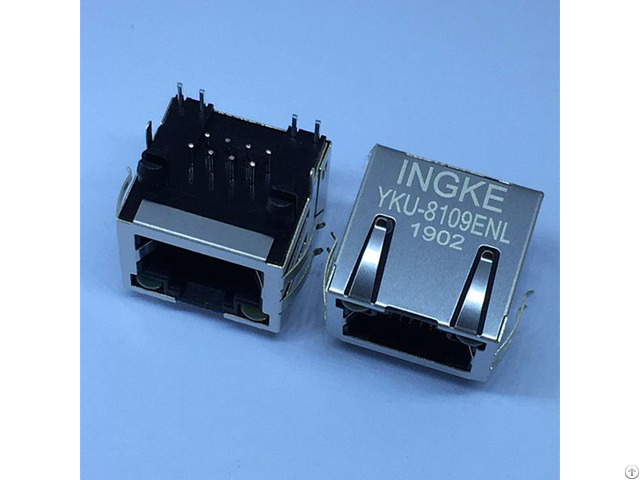

Ingke YKU-8109ENL 100% cross 615008137421 Through Hole Tab Up RJ45 Jack Modular Connector 8p8c Part Number: 615008137421
Made in China: YKU-8109ENL
Original Manufacturer: Ingke Technology
Supply Ability: 5500K-PCS/Month
Number of Positions/Contacts: 8p8c (RJ45, Ethernet)
Packaging: Tray
Connector Type: Jack
Number of Ports: 1
Number of Rows: 1
Mounting Type: Through Hole
Orientation: 90°Angle (Right)
Termination: Solder
LED Color: Yellow - Green
Shielding: Shielded, EMI Finger
Features: Board Lock
Tab Direction: Up
Contact Material: Copper Alloy
Contact Finish: Gold
Operating Temperature: -40℃~85℃
Flammability Rating: UL 94 V-0
Contact Finish Thickness: 30µin (0.76µm)
Shield Material: Copper Alloy
Housing Material: Thermoplastic Ingke Technology Mass production of the following models;634106149621 634106149621 634106149621 615012149421 615016137721 615024149521 634104149621 634104149621 634104149621 615004144021 634108149921 634108149921 634108149921 615006149421M 615006144121 615004144121 615006149421L 615006149421R 615008149521R 615008149521L
Company Contact:
- Posted By: Ingke Technology Co.,Ltd
- Phone: 86 (755) 3283-5625
- Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China
- Email:
- Website: http://ingketech.net
Published date: January 22, 2019
- Business Description: Ingke Technology specializes in producing 10/100/1000/2.5G/5G/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.
Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.
Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.
Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
Our Products:
- a60 113 331p432 edac 1 port rj45 magnetic jack connector
- we 7499111446 gigabit magnetic rj45 connectors
- gigabit 2250022 4 magnetic rj45 jacks
- trp 6605444 6 gigabit magnetic rj45 jacks
- si 61031 f gigabit rj45 modular jack
