Higo Connector F B L615 60v - China

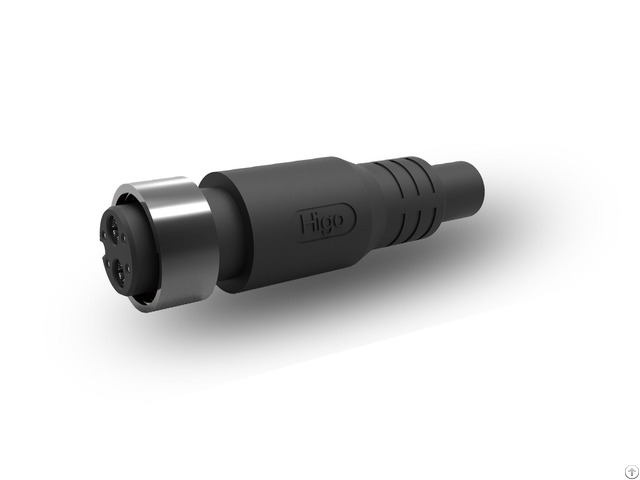

HIGO CONNECTOR-F.

B-L615 60V

Waterproof battery cable

Customized Battery connector

Max Outer Diameter 15mm

high-quality Motor connector description

Rated Voltage 60V AC/DC

Rated Current Power 45A, Signal 2A

Withstanding Voltage 700V

Insulation Resistance ≥20MΩ

Contact Resistance ≤10mΩ

Mating Type Screw Locking

Mating Cycles 200Times

Operation Temperature -25℃~+80℃

Protection Degree IP67

Mating Length 77mm

Contact Material Copper alloy plated with Sliver which conforms to military standard

Wire Section 0.14mm²+4.0mm²

We are professional ebike Battery connector manufacturer.

We provide you with Variety of connectors, such as Copper alloy Battery connector .
