Higo Connector F B 409e 48v - China

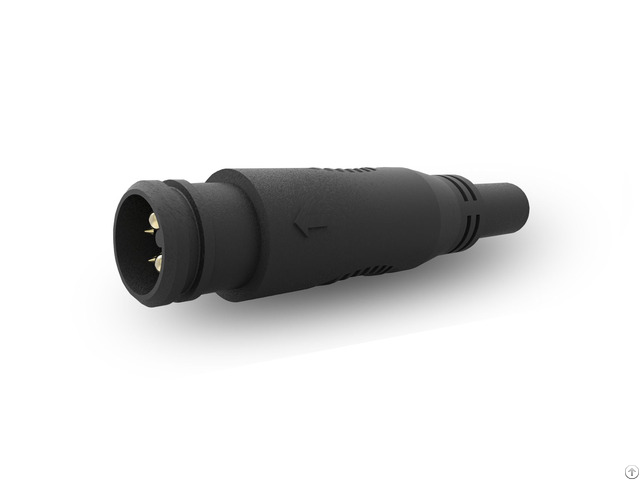

HIGO CONNECTOR-F.

B-409E 48V

More stable, smaller, more convenient design gives more possibilities.

Waterproof battery cable

Max Outer Diameter 9mm

Customized Battery connector description

Rated Voltage 48V AC/DC

Rated Current 15A

Withstanding Voltage 700V

Insulation Resistance ≥20MΩ

Contact Resistance ≤10mΩ

Mating Type Insertion Force 80N Max, Extraction Force 30N Min

Mating Cycles 200Times

Operation Temperature -25℃~+80℃

Protection Degree IP67 Mating Length 61mm

Contact Material Copper alloy plated with gold which conforms to military standard

Wire Section 1.0mm²+0.14mm²

We are professional Waterproof battery cable factory .

We provide you with reliable Battery connector .

Company Contact:

• Posted By: Shanghai Higo Electrical Equipment Co., Ltd.

• Phone: 86 512 51918068

• Address: No.17,Qingfang Road，Changshu, Suzhou , Jiangsu , China

• Email:

• Website: http://www.higocon.com/English/Home

• Business Description: Shanghai Higo Electrical Equipment Co., Ltd. is a high-tech company committed to the design and manufacture of advanced electrical connectors, and provides solutions for connector and cable and electromechanical products.

  The company's products range, is widely used in mechanical and electrical equipment, transportation, energy exploration and production, aerospace, medical, nuclear technology, military and other professional applications; We can not only supply high-quality products comply with relevant standards, but also can provide customized service products of high quality and fast; all products are through relevant application certification, meet the requirements of environmental protection.

  The process of Higo is the process of serving customers and being successful with their customers! We are diligently and diligently doing everything, and we are full of confidence to meet every challenge.

  Higo can supply signal connector, motor connector and battery connector, etc.

  Our product's reliability is guaranteed and it can give you a good use experience.
