High Frequency Antenna Board - China

High Frequency PCB

1.

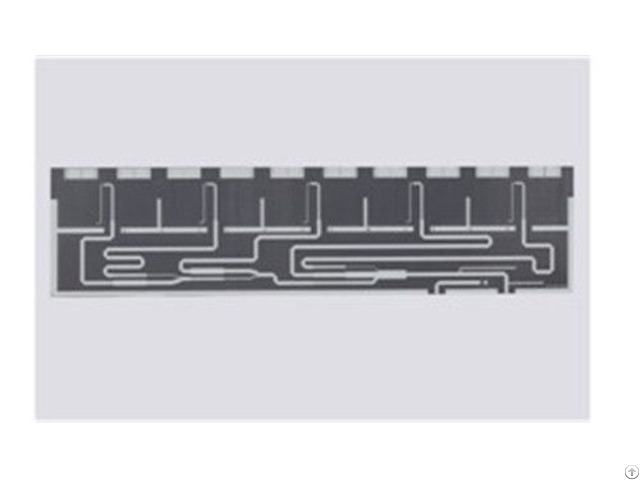

Product name: High frequency antenna board

cheap low volume pcb

Characteristic

1 - using pure PTFE (PTFE) plate F4BM-2 production.

the plate is relatively soft.

in the production process is easy to deformation and size expansion and contraction;

2 - need to use plasma processing;

3 - the size of long.

over most of the processing capacity of PCB factory;

4 - non resistance welding design.

line surface is easy to scratch.

rub flower.

the production process of the operation of the details have higher requirements.

5 - due to the characteristics of the plate itself.

the shape is easy to produce burr milling;

6 - this kind of sheet is not recommended to do spray tin treatment.

it is recommended to sink or sink tin treatment.

cheap pcb fabrication china

Specifications

Layer count: 2

Board thickness: 2.0mm

Base materials: F4BM-2

Finished size: 744*182mm

Surface finish:

tinLine width/line space: NA

Minimum hole: 0.40mm

Solder resist color: Non souder

Cu thickness: 1.5 OZ
