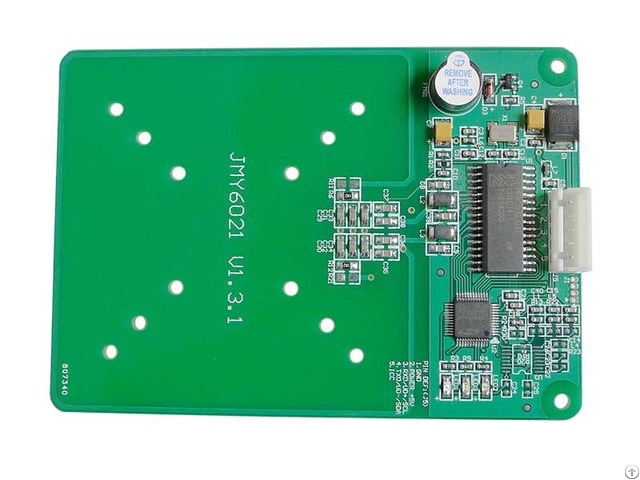

Hf Rfid Module Jmy6021 Iic Uart Rs232c Or Usb - China

Qualifications

•PCD: NXP MF RC500, MF RC531, SL RC400, CL RC632

•PCB Layers：4

•Working frequency: 13.56MHz

•Termsed standard: ISO14443A, ISO14443B, ISO15693, ISO7816

•Anti collision ability: Full function anti collision; be able to set multi-cards or single card

•Auto detecting card: Termsed, default OFF, could be set

•SAM slots: 2, T=0 & T=1 9600, 19200, 38400, 55800, 57600, 115200bps

•Data FLASH: 512 Bytes

•Power supply: DC 5V (±10%)

•Interface: USB HID, RS232C, UART or IIC by order

•Interface level: UART/IIC 3.3V (5V tolerance)

• Communication speed: IIC: Max.

200Kbps UART: 19200bps, 9600bps, 38400bps, 57600bps, 115200bps USB: 2.0 HID class

• Max.

command length: JCP04: 253bytes JCP05: 510bytes

•Power consumption: Max.

150mA

•Operating distance: 100mm (M1 typical distance, depending on card quality)

•Dimension: 100mm * 70mm * 10.6mm

•Weight: About 30g

•ISP: Termsed

•RoHS: By order

•CE certification: in plan (Jan.

17, 2015, soon)

•Operating temperature: -25 to +85°C

•Storage temperature: -40 to +125°C
