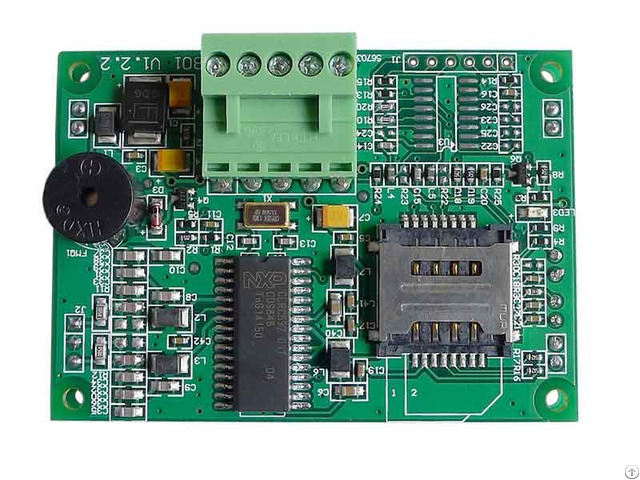

Hf Rfid Card Reader Writer Module Jmy6801c - China
price: 30.16 Dollar US$
Qualifications
•PCD type: NXP MF RC500, MF RC531, SL RC400, CL RC632
•PCB Layers:4
•Working frequency: 13.56MHz
•Termsed standard: ISO14443A, ISO14443B, ISO15693, ISO7816
•Anti collision ability: Full function anti collision; be able to set multi-cards or single card
•Auto detecting card: Termsed, default OFF, could be set
•SAM slots: 2, T=0 & T=1 9600, 19200, 38400, 55800, 57600, 115200bps
•Data FLASH: 512 Bytes
•Power supply: DC 5V (±10%)
•Interface: USB HID, RS232C, UART or IIC by order
•Communication speed: IIC: Max.
200Kbps UART: 19200bps, 9600bps, 38400bps, 57600bps, 115200bps USB: 2.0 HID class
•Interface level: UART / IIC 3.3V (5V tolerance)
•Max.
command length: JCP04: 253bytes JCP05: 510bytes
•Power consumption: Max.
150mA
•Operating distance: 70mm (M1 typical distance, depending on card quality)
•Dimension: 70mm * 50mm * 16.5mm
•Weight: About 120g
•ISP: Termsed
•RoHS: By order
•CE certification: in plan (Jan.
17, 2015, soon)
• Operating temperature: -25 to +85°C
• Storage temperature: -40 to +125°C
Company Contact:
- Posted By: Jinmuyu Electronics Co., Ltd
- Phone: 0086-18201080656
- Address: Room 132, NO. 16 Building, Tianqiaowan, Xinhua North RD., Tongzhou District, Beijing 101101, China., Beijing , Beijing , China
- Email:
- Website: https://www.jinmuyu.com
Published date: February 5, 2018
- Business Description: Jinmuyu is one of the leading 13.56MHz RFID reader manufacturers.
We build, design and customize products to satisfy a range of customers.
Our production facilities are certified under ISO/IEC10373-6, EMV2000, EMV2010 and PBOC 2.0 which are recognized all over the world.
Our products support ISO/IEC14443A, 14443B, 15693 and ISO7816(T=0, 1) protocols and also support MIFARE 1K, MIFARE 4K, FM11RF08, Ultralight, Ultralight C, MIFARE Mini, DESFire, MIFARE Plus; CPU cards(Type A/B, dual-Interface, T=CL); SR176, SRI512, SRI1K, SRI2K, SRI4K, SRIX4K, AT88RF020; NXP I.
CODE SLI, TI Tag_it HF-I, ST LRI and so on.
