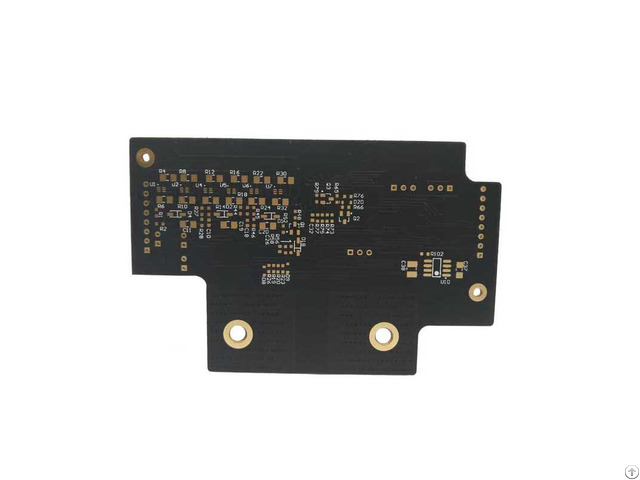

Hals Enig Mobile Charger Printed Pcbs Circuit Board - China

We could customized any type of pcb board for customers We Offer a Full Range of Printed Circuit Board Capabilities to Fit All of Your PCB Needs Process Item Craft Capacity Prepares materials Base Material FR4, CEM-1, Aluminium, High Tg Material, Halogen-free Material

Lamination press Layer Count 1-12Layers Thickness 0.2-3.0mm

Drill Min.

Hole Diameter 0.15mm (mechanical drill), 0.1MM (laser drill)

PTH Diameter Tolerance + / - 3mil

NPTH Diameter Tolerance + / - 2mil

Outer layer Min.

Line/Space 3.5mil/3.5mil Copper Thickness 1- 6oz

Impendence Impedance tolerance ±10% (±5%(Need assessment)

Solder Masking Min.

Solder Dam 0.1mm

Min.

Solder Mask Opening 0.075mm

Color Green, White, Red, Yellow, Black, Blue

Surface Treatment LF-HASL, OSP, Ni/Au Enig, Immersion Tin, Immersion Silver, carbon oil; Out-Line Profiling Profile Tolerance + / - 0.12MM

V-cut Remain Thickness Tolerance + / - 0.1MM

V-cut Angle Tolerance + / - 5°

Testing E-Testing 100% E-Testing (High Voltage Testing); Flying Probe Testing Final Product Thickness Tolerance + / - 10%

Warpage Tolerance + / - 0.75% Lead Time Double layer PCB Multilayer PCB Mass production Normal 6 work days Normal 8 work days Double layer 9-12 work days

Urgent 3 work days Urgent 6 work days Multilayer 12-15 work days

Company Contact:

• Posted By: KEYOU PCB CO, LTD.

• Phone: +8618926425302

• Address: QINGHU AREA , shenzhen , guangdong , China

• Email:

• Website: https://www.keyoucircuit.com

• Business Description: Established in2003, Shenzhen Keyou PCB Co., Ltd is a leading manufacturer of high-quality PCB products.

  located in city Shenzhen China, We Provide quick turn PCB prototype and different bulk of PCB production.

  For 15 years experience, Shenzhen Keyou PCB Co.,Ltd has achieved widespread recognition as a manufacturer in the PCB industry.

  We committed to providing the best and fastest service for our potential customer and becominga world-class hardware outsourcing design service provider.
