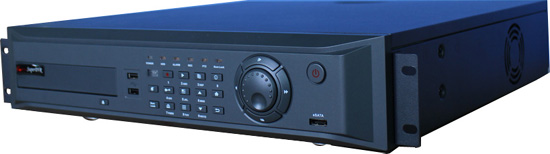

H 264 2u 3g Network 960h Dvr - China

Model No.

HK- S8208F HK- S8216F

Compression Format H.

264, supports VBR as well as CBR

Operating system Embedded LINUX

Video Input 8CH BNC( 1.0VP- P, 75Ω ) 16CH BNC( 1.0VP- P, 75Ω )

Video Output 1 BNC, 1 VGA, 1 HDMI, 1 SPOT

Audio Input 8CH BNC 16CH BNC

Audio Output 1ch BNC

Audio Compression G.

711A

Audio Bidirectional Talk 3.5mm MIC Input Interface

Alarm Input 8CH 16CH

Alarm Output 4ch

Preview Resolution 960H: PAL( 960* 576) , NTSC( 960* 480) ; FD1: PAL( 704* 576) , NTSC( 704* 480) ; VGA/ HDMI: 1920* 1080

Preview Display/ 12ch/ 16ch

Preview Privacy Masking 4 zones Maximum, On DVR

Recording Resolution 8ch FD1/ CIF/ 960H/ Q960H 16ch FD1/ CIF/ 960H/ Q960H

Record Mode Manual, Schedule, Motion, Alarm

Record Interval Pre- record, 5~30s; Post- record, 0~180s

Playback Channel 8ch/ 16ch 960H Full Channels Realtime Playback

Playback Search Mode Time, Date, Record Mode, Smart Search, Quick Playback

Playback Privacy Masking 4 Zones Maximum, On DVR and PC

3G Network Support 3G Modem

Remote Operation WEB( FireFox, Chrome, Internet Exploerer, Safari)

Mobile Support Support ( IPhone, Andorid, Ipad)

Backup USB Disk/ USB HDD/ USB CD& DVD- RW/ eSATA / Internal SATA burner/ Network Download

HDD 8 HDD( Max support 4TB each) , 2 eSATA( Front 1, Back 1)

Network Interface 1 RJ- 45 10/ 100M/ 1000M adaptive Ethernet Interface

USB Interface 4 Interfaces( Front 2 & Back 2)

Auxiliary Interface 1 RS- 485( FDX) , 1 RS232, 1 IR Extension Cord

Storage Temperature& Humidity - 20~65°C/ 10~90% RH ( No Condenser)

Operation Temperature& Humidity - 10~45°C/ 15~85% RH

Power Adapter 220/ 110V, 50/ 60HZ

Power 67W 71W

Dimension( L* W* H) 440 * 440 * 88mm

Weight Gross weight, 10kg; Net weight, 7.1kg
