Flexible Metal Conduit Fitting EMI Proof Solution - BEZ05 Series(EU)

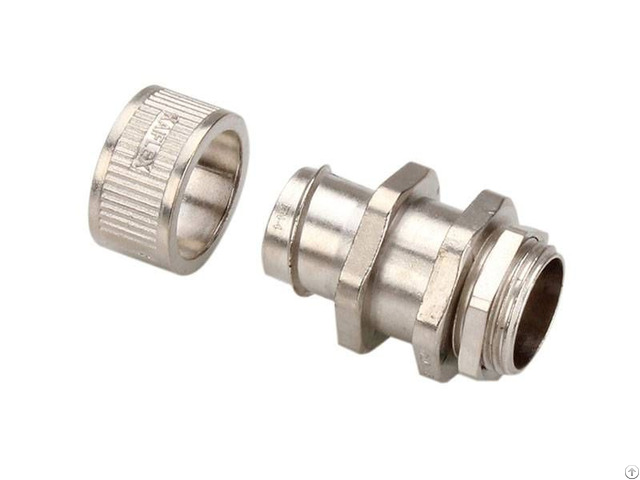

Metal Conduit Fittings BEZ05 series is a four-piece swivel straight connector and has been designed to meet with IEC 60423 standard.

The BEZ05 series is applied on the relay or end point of wiring system to connect metal conduits and junction box or enclosure for wiring extension and protection.

The body is made of zinc alloy with RoHS compliance which is connected with metal flexible conduit by screwing in and covering with a nut and fixed to the knockouts of junction box or tapped entries by locknut with M type male thread system.

The concise structure design is benefit for quick and convenient assembly and swivel structure enable quick and efficient installation but remains the feature of high tensile resistance at the mean time.

For grounding purpose, an extra grounding ring is suggested to apply.

This series of fitting is proposed to fit with metal flexible conduit series PEG13, PEG23, PES13 and PES23 with braiding which will offer excellent efficiency of EMI prove.

Material：Zinc Alloy

Temperature Range : -50℃~+200℃

IP Rating : IP 40

Surface Finish : Nickel plated, other treatments are available by consult.

RoHS Compliance : Yes
