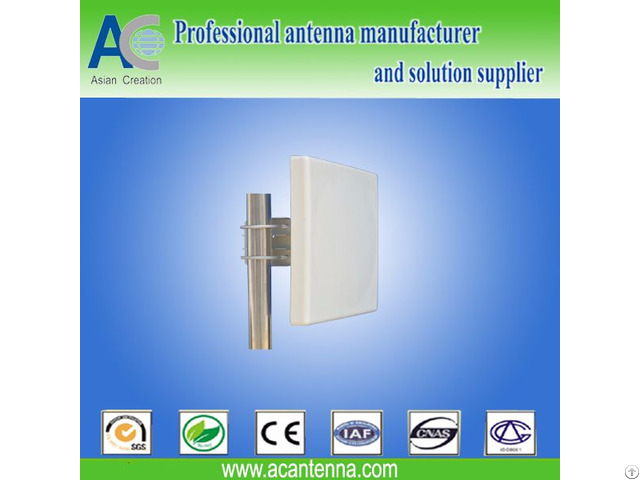

Dual Band 2 4 5ghz Panel Antenna - China
price: 30.00 Dollar US$
Electrical
Frequency Range 2400-2500/5150-5850MHz
Band width 100/700MHz
F/B Ratio ＞30dB
Gain 10.5/13dBi
V.S.W.
R ≤1.8
Radiation Direction
Horizontal Beam width 65°/55°
Vertical Beam width 30°/25°
Polarization Vertical
Lightning Protection DC Grounded
Maximum Input Power 100W
Impedance 50Ώ
Connector N×2 Female
Antenna Radome Material ABS
Mount way Pole
Diameter of Installation Pole Ø30~Ø50mm
Mechanical
Dimensions 250×250×25mm
Weight 1.2Kg
Operating Temperature -40℃ to+70℃
Rated Wind Velocity 241Km/h
RoHS Compliant YES
Company Contact:
- Posted By: Asian Creation Communication Co.,Ltd
- Phone: 13542591153
- Address: Wangchung Industrial Area A,Sanshui, Foshan , GuangDong , China
- Email:
- Website: https://www.acantenna.com
Published date: August 17, 2016
- Business Description: Asian Creation Communication Antenna Fty as a professional antenna manufacturer in China.
estabaled in
2001 - Based on a 500 square metre site, Asian Creation have 110employees, now we has 6 engineers, 5senior technicians and a regular company structrue, always with punctual delivery time, preferential price, superior quality, better service for the valued customer.
