Double Sided Board - China

Single-double size PCB

1.

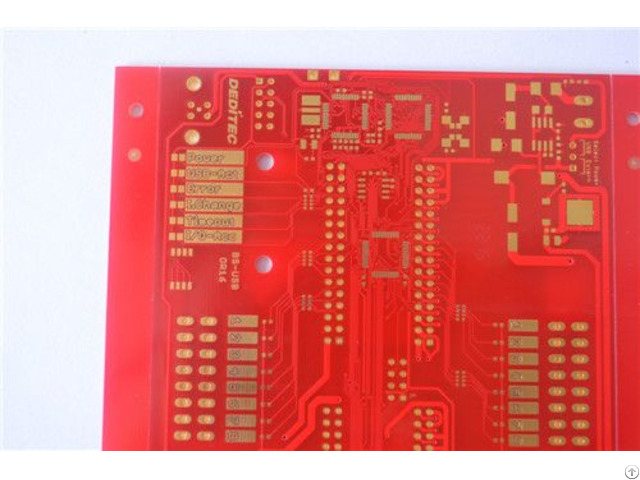

Product name: Double sided board

cheap circuit board prototype

Characteristic

The thick plate.

gold Jinhou 5 uinch.

Specifications

Layer count: 2

Board thickness: 1.60mm

Base materials: FR4 S1141

Finished size: 160*70mm

Surface finish: Heavy thick board

Line width/line space: 5/5mil

Minimum hole: 0.25mm

Solder resist color: Sensitive red

Cu thickness: 1 OZ

Company Contact:

• Posted By: China PCB Win Technology Co.,Ltd

• Phone: 86-755-23310576

• Address: JinYuan Building B-509,XiXiang Road No.300, XiXiang, Bao'an,ShenZhen,China, ShenZhen , Guangdong , China

• Email:

• Website: https://www.pcbwin.com

• Business Description: PCBWIN is a professional supplier of high-quality PCB and assembling service in China, it is a unit of ShiYing Group, which focuses on manufacturing high-quality PCB.

  We are specialized in manufacturing PCB.

  Now we have helped thousands of engineers, electronics design company and electronics industry enterprises to complete their work on electronic products.

  Our products sell well all over the world, involving in communication, industrial automation, IT, medical, electronics, aviation, spaceflight, nation defense filed and so on.

  We devote to manufacturing PCB and providing assembling service with the strictest quality-control standards.

  So far, we have serviced more than 8, 000 oversea customers.

  Competitive price, high quality and short delivery time are the good impression we have left on user's mind.

  Reliable quality assurance to ensure the quality of products

  PCBWIN believes that the quality of products is the core of a enterprise's development.

  So our company have the well-controlled quality by professional engineers from order to package.

  We have approved certifications like ISO9001, ISO14001, UL, CQC etc.

  and established a sound quality monitoring and prevention system to ensure the stability of the products' quality.

  Diversity products, short delivery time to meet your needs

  PCBWIN has advanced equipment and production capacity to meet our production of a full range of products.

  our single, double layer board can deliver within 24 hours, four, six layer can deliver within 48 hours.

  our products include: high density multilayer board, blind buried hole multilayer board, characteristic impedance board, control board, high frequency board, Rogers, high TG board, aluminum PCB, copper substrate, rigid flexible combination board.

  If our quotation system can not meet your needs, please send mail to us, we will quote for you as soon as possible.
