Die-casting Outdoor Waterproof LED Screen P4.81 Video Visual For Sound Stage Events

Waterproof LED Screen For Stage

1 - Die-casting aluminum cabinet, lightweight design.

2 - Straight & curve design, curve angle is 0-15°.

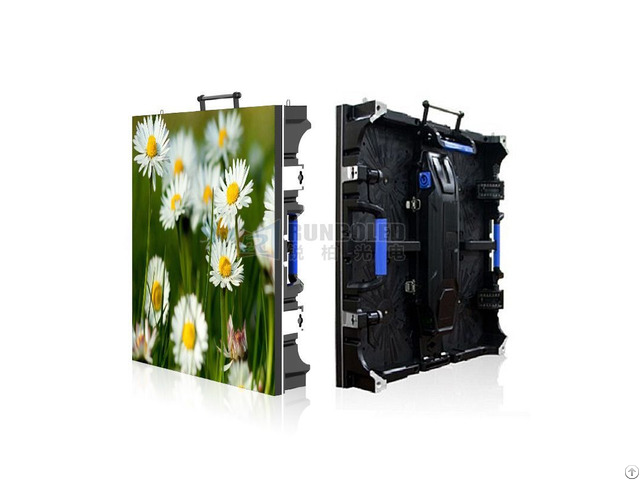

Features of our Outdoor LED Cabinet:

1 - Die-casting aluminum cabinet, lightweight design.

2 - Straight & curve design, curve angle is 0-15°.

2 - 500x500 & 500x1000mm cabinet size are available.

3 - P2.604/P2.976/P3.91 indoor rental, P3.91/P4.81 outdoor rental, which can meet the stage background.

4 - HD definition with high refresh rate IC driver.

5 - Multi-application for all stage events: wedding party, corporation events, concert events, live events, TV station events, stage backdrop.

Straight & curve led Screen, with good side lock, which could keep the quality of the lock, not easily broken when it was in usage.

Curve Angle is 0-15°, Support 90 degree assembling, which can make with different shape as square shape or L-shape.

With fast lock, quick installation, suit for all the rental stage events.

Specification of Outdoor Waterproof LED Screen:

Parameter Technical of P4.81 Outdoor Hire LED Screen for Stage Events

Item Model Parameter

LED Module Info.

Pixel Pitch P4.81 Outdoor Rental LED Lamp SMD1921/SMD2727/2525 IC Driver MBI5124/ICN2153/MBI5252 LED Module Size 250*250mm LED Module Resolution 52*52dots Color Temperature 3000-9000K Drive Mode 1/13 scan

LED Cabinet Info.

Cabinet Size 500*500*80mm & 500*1000*80mm Cabinet Resolution 104*104dots & 104*208dots Cabinet Material Die-casting Aluminum Cabinet LED Module Quantities 2*2=4pcs & 2*4=8pcs Cabinet Net Weight 8.5kg/pc & 14kg/pc IP Grade Waterproof IP65

LED Display Info.

Best Viewing Distance 5m-50m Viewing Angle H: 140°/ V: 120° Pixel Density 43222dots/㎡ Brightness 4300nits Max.

Power Consumption 636W/㎡ Ave.

Power Consumption 286W/㎡ Refresh Rate 1920Hz-3840H, can be adjusted

Control System Info.

Operating System WIN98/2000/NT/XP Control Method Synchronous display with control PC by DVI or Asynchronous with Wifi/4G/USB Control System Linsn, Nova-star, Colorlight or as you required Display Content Video, DVD, VCD, TV, picture, cartoon, graphics, texts.

etc.

Frame Frequency 50Hz or 60Hz Transmission Distance Multi mode fiber <500m, single mode fiber <30km, internet cable<100m

Operation Info.

Working Temperature -20℃--+60℃ Storage Temperature -30℃--+80℃ Input Voltage AC110V/AC220V Humidity Environment 10%-95% Lifespan 100, 000hours MTBF 10, 000hours Certificate CE, CCC, FCC, ROHS, ISO9001
