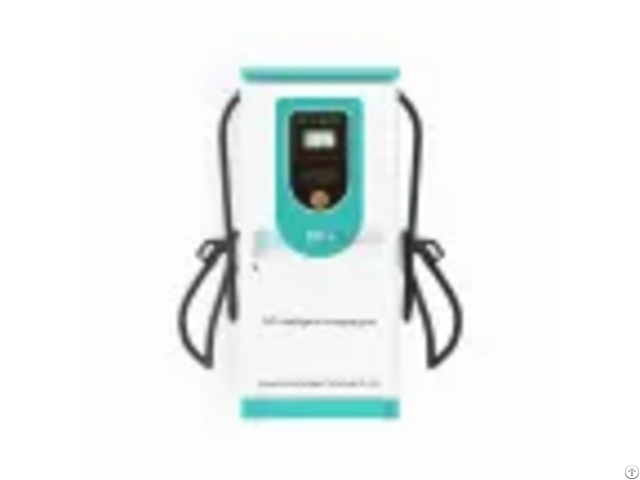

Customized EV Charging Pile

Product Description

At Ruihua, we understand that every charging need is unique.

Our Customized EV Charging Pile exemplifies our dedication to providing tailor-made solutions for electric vehicle charging.

As experienced EV charging station manufacturers, we combine expertise with innovation to deliver a charging station that seamlessly integrates into your environment.

Smart Ev Solutions

Ruihua Intelligent AC charging pile and DC charging pile is characterized with high stability, good performanc and CE certified.

AC charging pile is specially charging for a power supply device which is fixed and installed in the roadside parking lot and other places in the service area.

DC charging pile (or non-vehicle-mounted charger) directly outputs direct current to charge the vehicle-mounted battery.

Our power includes 30kW, 60kW, 80kW, 120kW, 150kW, 160kW, 180kW, 240kW, 280kW, 320kW, 360kW, 600kW and the charging speed is fast.

Customized EV Charging Pile Details:

Multi-standard: CCS1, CCS2

Network or standalone operation

Support smart charging and load balancing

Multiple protection to ensure users’ safety

OCPP 1.6 JSON/ OCPP 2.0.1

( Comply with latest OCPP protocol as Ruihua is the member of OCA )

Power Specification

Input Connection 3-Phase : 3P+N+PE

Input Voltage 400V/AC ±15%

Frequency 50Hz or 60Hz

THDi ≤5%

Power Factor ≥0.98

Output Voltage 150Vdc - 1000Vdc

Max.

Output Current 200A( 250A optional)

Rated Power 120kW - 240kW

User Interface & Control

LCD Display 7" Color Touch Screen

LED Indicator Green/Yellow/Red

Charging Interface CCS2 Plug( CCS1 Plug / CHAdeMO optional )

Number of Charging Interface 2

Energy Measuring Embedded meter, with 1% accuracy

Communication

Backend Ethernet( Bluetooth / Wi-Fi/ 4G Optional )

Charging Protocol ISO 15118, DIN 70121

Backend Protocol OCPP 1.6 JSON ( OCPP2.0.1 )

Protection

Residual Current Device Yes

Internal Fuse Yes

Electrical Protection Over/Under Voltage Protection, Over Current Protection, Short Circuit Protec-

tion, Over/Under Temperature Protection, Lightning Protection, Ground Fault, Surge Protection

Environmental

Operating Temperature -30℃—+55℃

Storage Temperature -40℃—+75℃

Operating Humidity Max.

90% RH, Non-Condensing

Operating Altitude ≤ 2000m

IP, IK Level IP65, IK10

Cooling Method Independent air duct

Mechanical

Product Dimension 1780*800*950 mm (H*W*D)

Charging Cable Length 5m

Weight 60kw: 390kg; 120kw: 420kg;

Mounting Free Standing

Certifications

Certifificate IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24

Safety CE

EMC Class B

Why Choose Ruihua's Customized EV Charging Pile:

♦Advanced Technology: Our DC EV Charging Station incorporates cutting-edge technology to ensure efficient and reliable charging for all electric vehicles.

♦Flexibility and Customization: As vehicle charging station manufacturers, we recognize the importance of adapting to diverse requirements.

Our charging pile can be customized to suit your specific branding and functional preferences.

♦Reliability: As trusted manufacturers of charging stations, we prioritize reliability.

Our charging pile is built to withstand various environmental conditions while consistently delivering optimal performance.

♦Seamless Integration: Whether you're an urban planner, a commercial property owner, or a fleet manager, our Customized EV Charging Pile seamlessly integrates into various settings, offering a convenient and user-friendly charging experience.

♦Industry Expertise: With a proven track record as electric charging station manufacturers, we bring industry expertise to every product we offer.

Our solutions are designed to meet the evolving demands of the electric vehicle market.

Ruihua stands as a distinguished name among EV charging station manufacturers, and our Customized EV Charging Pile exemplifies our commitment to innovation, sustainability, and customer satisfaction.

As vehicle charging station manufacturers, we empower you to play an active role in shaping the electric future by providing reliable and adaptable charging solutions.
