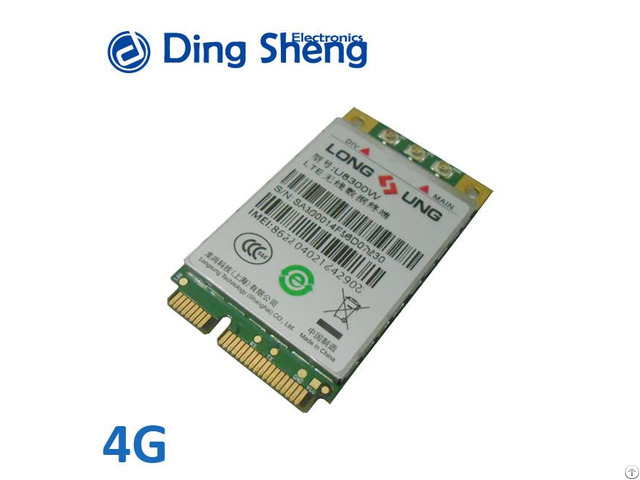

Cat3 4g Lte Mini Pcie U8300w V2 - Taiwan

Cat3 4g lte mini pcie

u8300w v2 is a wireless module which is designed for the global market.

it is a consumptive product; it can be designed in many kinds of applications which can work on lte-tdd/lte-fdd/td-

scdma/umts/edge/gprs/g sm network.

on lte-tdd network, u8300w enables connect to the internet at dl data speed up to 61mbps and ul data speed up to 18mbps.

on lte-fdd network at speed up to 100mbps dl and 50mbps ul, in the area where lte service are not available, u8300w still enables reliable and secure data connect over 3g(td-scdma/umts) or 2g(edge/gprs) network.

u8300w v2 provides sms, mms, phonebook functions as well as high speed access, and also audio function.

it can be designed in many kinds of applications.

such as data card, video monitor, tablet, electic-book, mid, vehicle equipment, etc.

band

tdd-lte : four-band b38/b39/b40/b41

fdd-lte : tri-band b1/b3/b5

td-scdma : dual-band b34/b39

umts/hsdpa/hspa+ : dual-band b1/b5

gsm/gprs/edge : quad-band 850/900/1800/1900 mhz general features

• supply voltage range : 3.3v-3.6v

• normal operation : -20°c to +65°c

• restricted operation : -30°c to +75°c

• storage operation : -40°c to +85°c

• dimension : 51.0 x 30.0 x 4.6 mm

• output power:

- class 3 (0.25w) for lte/wcdma

• control via at commands

(3gpp ts27.005/3gpp ts27.007 )

• low power consumption

- sleep mode: 5ma

- power down: 50 μa specifications for data

• support release 9 category 4

• lte-fdd up to 10 mbps dl, 5 mbps ul

• wcdma up to 42.2mbps dl, 5.76mbps ul

• transparent mode

• pbcch support

• ppp-stack

• coding schemes cs 1, 2, 3, 4

• fota

• tcp/ip

• ppp-stack

• fota

• tcp/ip

• ndis specifications for sms

• point-to-point mo and mt

• sms cell broadcast

• text and pdu mode interfaces

• rf connector

• pci express mini card interface

- power supply

- usb high speed

- uicc/sim/uim card interface 3v, 1.8v

- uart

- analog audio

- pcm

• antenna connector
