Capacitive Single Finger Scanner Sm 2du Fbi - China

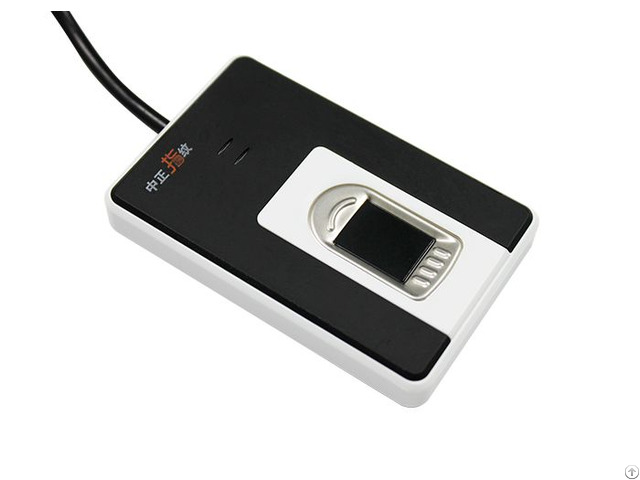

Capacitive Single Finger Scanner SM-2DU FBI Certified Single Finger Reader

Fingerprint Scanner

OVERVIEW:

Miaxis SM-2DU is USB2.0 capacitive single finger reader with adopted 10.4x14.4

mm active sensing area TCS2 capacitive sensor to capture high-quality fingerprint image under the control of PC or upper computer.

It provides quick and reliable fingerprint biometric authentication to desktop or network resources.

Single Finger Capture Device FEATURES: 508 dpi resolution High Image Quality: TCS1 sensor of patented TouchChip technology Live finger detection technology IP 67 rated dust and water protection USB device, easy to operate “plug-and-play” LED control

USB2.0 Fingerprint Scanner SPECIFICATION:

Index SM-2DU

Product size(L x W x H) 88.5 x 55.0 x 18.0mm

Sensor type Capacitive sensor, TCS2

Active platen area 10.4 x 14.4mm

Image Size (pixel) 208 x 288 pixel

Image resolution 508dpi

Gray Scale 8 bit (256 levels)

Live Finger Detection Yes

Platen Ingress Protection(sensor surface) IP67

ESD immunity ±8kV contact discharge

±15kV air discharge

Supply Voltage DC 5V±5%

Supply current ≤80mA

Communication Interface USB

Operating Temperature -10°C to +50°C

Storage Temperature -20°C to +60°C

Operating humidity 20%RH～90%RH

Device Weight(g) 90g approx.

Operating system environment Windows xp/ 7 / 8 / 10, Android, Linux
