Capacitive Fingerprint Module - China

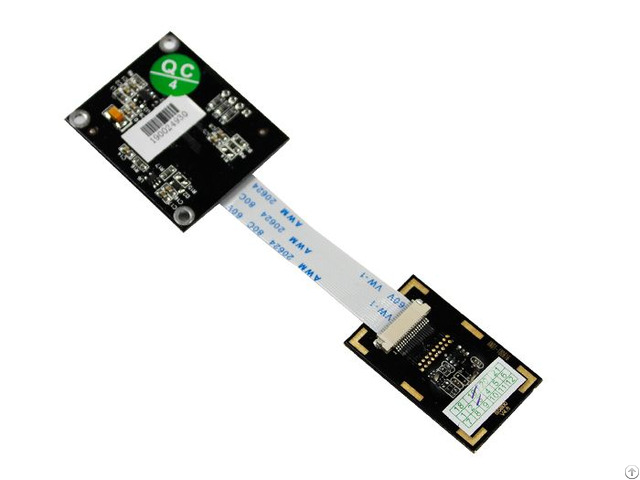

Miaxis SM-62UT Capacitive Fingerprint Module Fingerprint Authentication Modules Biometric OEM Module

OVERVIEW:

Miaxis SM-62UT is a standalone Capacitive Fingerprint Module, consisting of semi-conductor fingerprint sensor, low power consumption & high-performance ARM core processor and FLASH etc chips.

The module supports on-board fingerprint image processing, template extraction, fingerprint matching (including 1: 1 and 1: N), template storage and other functions.

FEATURES: 508 dpi resolution 1: 500 identification time < 1sec Live finger detection Power control function for for embedded applications to turn-on/off module Touch wake-up function

custom Biometric scanner SPECIFICATION:

Specification SM-62UT

CPU 108MHz, Cortex-M4

Flash memory 512KB

(Expandable up to 4MB)

Board Size(L x W x H) 35.0× 30.0× 7.5mm

Sensor Size(L x W x H) 33.4 x 20.4 x 3.6mm

Sensor type Capacitive

Active platen area 9.6 x 12.8mm

Image Size 192*256 pixel

Image resolution 508dpi

Grey scale 8 bit (256 levels)

Company Contact:

• Posted By: MIAXIS BIOMETRICS CO., LTD.

• Phone: +86-571-81951610

• Address: 5 Floor, Science&technology Building, East Software Park,No.90,Wensan Rd, Hangzhou,China , zhejiang , China

• Email:

• Website: https://www.miaxis.net/

• Business Description: Founded in 2000 and headquartered in Hangzhou, Miaxis Biometrics Co., Ltd, a subsidiary of XGD.

  COM, is Chinese's industry-leading developer and manufacturer of biometric fingerprint devices and multi-biometrics systems (facial,fingerprint,finge r vein etc) for identity management with core technologies of image processing and world renowned biometric recognition algorithms.

  We provide both advanced capacitive & optical fingerprint scanner and verification terminal series and turnkey biometric solution including smart E-door lock system solution, visiting access control management soluiton, bank teller fingerprint management solution and so on, widely applied to finance, security, government affairs, police, home automation industries.

  Based on over 18 years of industry experience, Miaxis is the pioneer of fingerprint recognition technology in domestic financial industry with more than 50% market share and key vendor of fingerprint scanner for Chinese resident ID card program approved by the ministry of Public Security.
