Brass Terminal Bar With Fixing Part Gk001 0609 - China

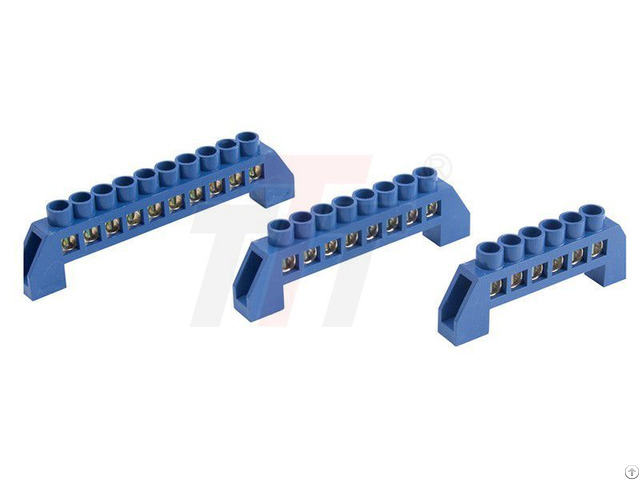

Brass Terminal Bar with Fixing Part GK001-0609 Terminal series use high quality brass raw material, has the characteristics of high-current- carrying capacity, convenient-wiring and durable quality.

With acid-pickling treatment, products are not easily oxidized.

Due to Precisely manufacturing, it avoid the difficultyof reinstallation after many times .

Pole No.

Installation Dimension(mm) Outline Dimension(mm) Sectioncross of Brass(mm2)

4 48.2 59.2*11.2 6*9

6 65.4 76.4*11.2 6*9

8 82.6 93.6*11.2 6*9

10 99.8 110.8*11.2 6*9

12 117 128*11.2 6*9 Requirements to a Brass Terminal body

1 The terminal body is manufactured from copper-zinc alloy

2 The terminal body is to be manufactured in parallelepipedal shape with mutually perpendicular side planes.

Deviation of perpendicularity is no less than 0, 1mm

3 The other sharp edges are to be blunted

4 The surface of holes for wire mounting is to be smooth without burrs, edge fins and etc.

5 The form of thread into threaded openings is to be full without edge fins.

Every opening is to have no less than three full turns of a thread

We are Power Distribution Block Supplier.

Requirements to a terminal

1 The terminal is to be equipped with screws in the quantity equal to the quantity of contact groups for the wire fixing

2 The screws are not to create troubles to next screws at the operation

3 Dimensions and completed set of terminals are to correspond to design documents.

4 Operation temperature range could be from minus 40 to plus 50 °С.

Outgoing inspection of High-Quality Brass Terminal

Visual Check:

Bring out the absence of outer damages, deep scratches, cracks, chips, corrosion on the terminals and screws.

All screws are to be entirely tightened.

Temperature Rise Test :

5% of the batch of each standard size, but not less than 10 pcs.

Certifications:

CE, can be of ROHS at your decision
