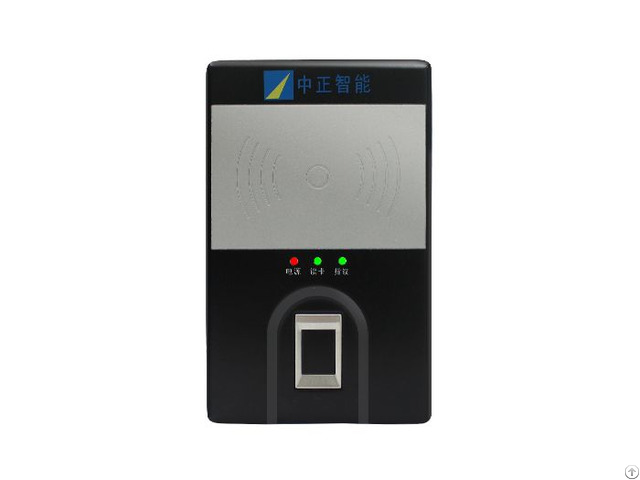

Bluetooth Fingerprint Card Reader Mr 210 Bf - China

OVERVIEW:

Miaxis MR-210-BF Bluetooth Fingerprint Card Reader combines Miaxis FPR-210E Fingerprint Scanner and ISO14443 TYPE A&B contactless smart card reader into one device, used to do two-factor authentication, specially designed for National ID Card verification applications.

Under the control of mobile device via bluetooth interface, MR-210-BF works as a portable fingerprint matcher and can do "Match on Device".

That is, the registered fingerprint stored on national ID card which is read into mobile devices will be compared with the holder's live fingerprint captured from fingerprint scanner in the field.

Bluetooth Fingerprint smart Card Reader FEATURES:

1 - Built-in 508dpi capacitive fingerprint scanner FPR-210E with large finger capture area

2 - Built-in contactless card reader (ISO14443, Type A&B card)

3 - Bluetooth 4.0 communication

4 - National ID card ( with embedded biometric data) verification or Match-on-device authentication application

5 - Three LED for card reader/fingerprint capturing/power supply status indication

6 - China Public Security Product certificated

7 - Portable design with rechargeable Li-on battery

8 - 5MP Camera optional for face capture to do facial recognition

Biometric Smart Card Reader SPECIFICATION:

Specification MR210-BF

Power supply USB powered, DC5V/2A power adapter

Or Li-ion battery, 3000mAh

Continuous stand-by mode time ≥14d

Continuous card-reading time ≥4h

Device Weight ≤300g

Device dimension L× W× H=155*96*37mm

ESD&EMC ESD IEC 61000-4-2 Level 3 ±8 kV Air discharge, ±6 kV Contact discharge

EMC IEC 61000-4-3 level 2

Communication Bluetooth 4.0 BLE, distance ≥15m, max.

20m

1 Micro USB

Contactless smart card reader Supports for ISO14443, Type A&B card

Hardware parameter

(fingerprint processing) CPU: 220MHz;RAM: DDR2 2MB; Flash: 2MB

Fingerprint scanner Capacitive sensor, TCS1

Active platen area 12.8x18mm

Image resolution is 256x360 pixel, 508 DPI

Fingerprint template size is 512K byte

Camera(Optional) 5 MP camera

Device ports External USB for camera

Loudspeaker Support

Environment St.

Temp: -40~+60℃ Op.

Temp: 0~+50℃ Humidity: 20%R～90% Vibration: 10～55Hz
