Automatic Capacitance And Dissipation Factor Test Set - China

Product Description

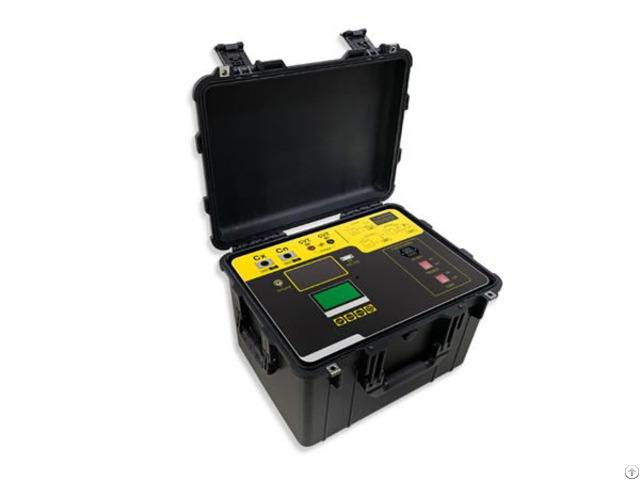

Hengfeng tan delta tester measures the capacitance and dissipation factor factor (tgδ) of high voltage electric equipment.

12KV high voltage is generated by internal transformer of the instrument, which is used for testing test object after transformer voltage rising.

Capacitance and power supply can be externally connected if further testing is required.

12KV high voltage is generated by internal transformer of the instrument.

External standard capacitor and power supply can be connected if further testing is required.

In addition to the normal UST and GST test modes, HengFeng dissipation factor tester has more modes : CVT, GSTg, CVT Ratio, 4-Channel…

Features

1 - Digital backlit LCD screen.

2 - Multiple automatic double vairable frequency, which can effectively resist the frequency interference of test site and ensure the accuracy and stablity of test results.

3 - UST+GST+CVT+ GSTg+ CVT ratio + polarity+phase difference+4 channels

4 - 4-channel function, measuring four test object in a single test

5 - Reserve the interface for external standard capacitor and external transformer

6 - Internal memory with time/date stamp

7 - Internalthermal printer

8 - USB port for export test data to USB flash drive.

Application

Capacitance and Tan Delta Tester is a very basic method in the insulation test, which can effectively find the overall moisture deterioration and deterioration of electrical equipment insulation, as well as partial defects.

It is widely used in dielectric loss measurement of transformers, bushings, capacitors, surge arresters and other equipment in the power industry.
