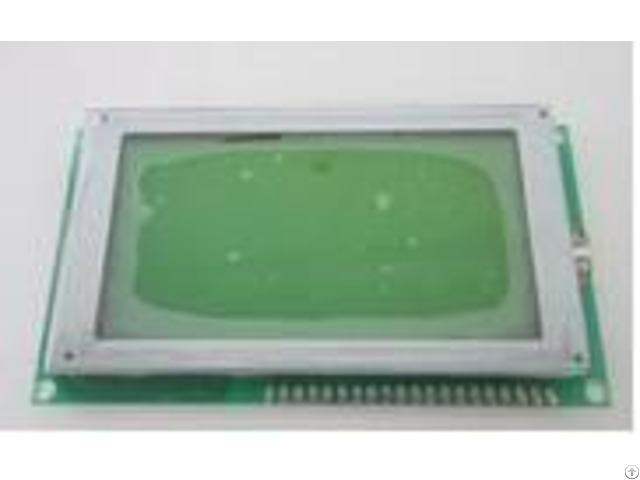

Ampire Stn Lcd Moudle Ag12864a 128x64 - China

Productor Ampire

Dot(W*H) 128*64

Product AG12864A

Type COB

Back-light type LED

Dot size(W*H) 0.48*0.48

Dot pitch(W*H) 0.52*0.52

Character(W*H) 71.7*39.0

View area(W*H) 93.0*70.0*14.5

Built-in Controller SBN6400G/SBN0064G

FEATURES

(1)Display format: 128*64 dots, 1/65 duty, 1/9 bias.

(2)Construction: LCD pancl, COG and FPC.

(3)Display type: FSTN, Transflective, White LED BLU, 6 0’clock view

(4)Controller: ST7567

(5)Extend temperature type

(6)ROHS compliant

MECHANICAL DATA

Parameter Stand Value Unit

Dot size 0.245(W)*0.310(H) mm

Dot pitch 0.260(W)*0.325(H) mm

Viewing area 33.6(W)*22.3(H) mm

Module size 36.6(W)*65.8(H)*1.6(T) mm

INTERFACE

NO.

Symbol Function

1 LCD_CS Chip select input

2 LCD_RESET Hardware reset input(6)ROHS compliant

3 A0 Select address register/data register

4 WRITE Write control signal input

5 READ Read control signal input

6-13 D0-D7 Data bus

14 VSS Power Supply Ground(0V)

15 VDD Power Supply (3V)
