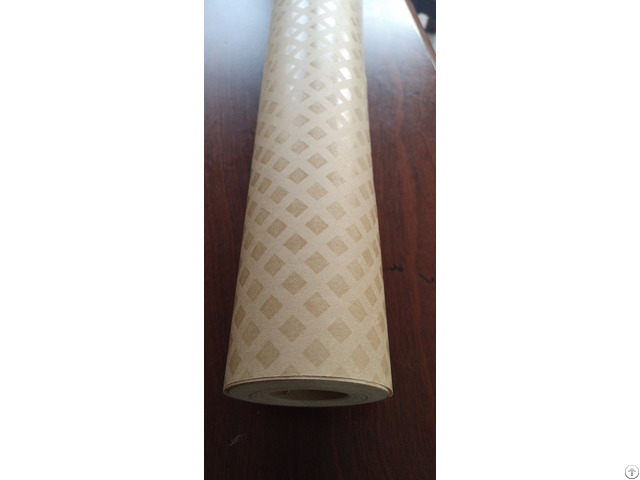

Ama Rhombus Dotted Composite Insulation Paper - China

Is a semi-cured soft composite material made of modified epoxy resin coated on the surface of a Polyester Film Double-Sided Composite Cable Paper(abbreviated as AMA) in a rhombus shape.

This product is universal interlayer insulation paper for transformer and current transformer.

Has good oil absorption, and will not pollute various oils, the epoxy resin coated can produce strong adhesion with coils or other electrical components, prevent displacement and loosening of coils and electrical components during operation, thereby ensuring the safety and reliability of electrical equipment such as transformer in operation.

Mainly used for high and low voltage interlayer insulation of various oil-immersed power transformers.

Compared with traditional Dotted Paper, it has the advantages of high transformer production efficiency and high voltage resistance, which can effecitively reduce the cost of transformers, and it has excellent oil resistance.

Thickness: 0.15mm, 0.20mm.

Width: recommend: 960mm, 25mm, 50mm, or cut according to customer’s requirements.

Inner diameter of the roll: 76mm.
