500mm Uhp Graphite Electrode For Electric Arc Furnaces - China

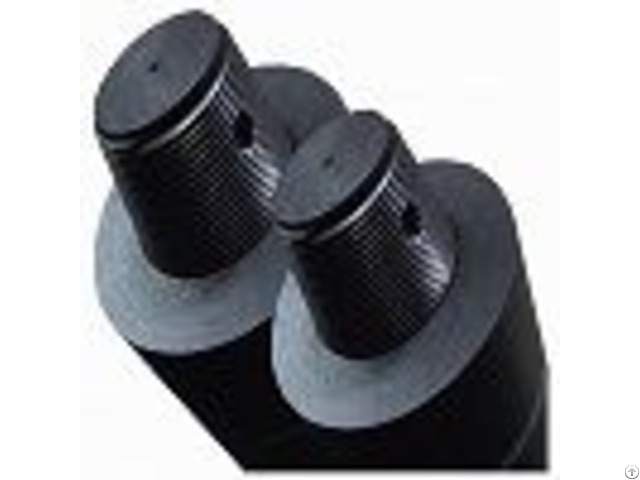

500mm UHP Graphite Electrode for Electric Arc Furnaces

UHP Graphite Electrode

DESCRIPTION

Designed primarily for use in electric arc furnaces and ladle furnaces, our UHP graphite electrodes aremade of premium needle cokes in a process that includes strict grading, mixing, molding, double baking, high pressure impregnating and fine-matching.

Model Number: SY-UHP500

Application: EAF/LF

Grade: UHP(Ultra-high power)

Length: 1600/1800/2000/ 2400/2700/3000mm

Resistance((μΩ.

m): 5.5

Bulk Density(g/cm³ ): 1.66

Flexure Strength (≥, MPa): 11

Elastic Modulus (≤, GPa): 14

Ash Content (≤, %): 0.3

CTE(≤, 10-6/°C): 1.4

Material: Domestic needle coke/Imported Needle Coke

Color: Black/Grey

High Quality graphite electrode EATURE

Outstanding electrical conductivity Low consumption rates

Anti-oxidation

Highly flexible strength and Bending Strength

APPLICATION

Graphite electrode are used primarily in electric arc furnace steel manufacturing.

It can provide high levels of electrical conductivity and capability of sustaining the extremely high levels of generated heat, and also used in the refinement of steel and similar smelting processes.

DC electric arc furnace

AC electric arc furnace

Submerged arc furnace

Ladle furnace

UHP carbon electrodes SPECIFICATION

Table 1: Technical Specification of UHP Graphite Electrode

Dia.

(inch) Resistance

(≤, µΩ·m) Density

(≥, g/cm3) Flexure Strength

(≥, MPa) Elastic Modulus

(≤, GPa) Ash Content

(≤, %) CTE

(100 °C – 600 °C)

(≤, 10-6/°C) Current Load

(A) Current Density

(A/cm2)

10 5.5 1.67 11 14 0.3 1.5 8100–12200 20–30

12 5.5 1.67 11 14 0.3 1.5 15000–22000 20–30

14 5.5 1.67 11 14 0.3 1.5 20000–30000 20–30

16 5.5 1.67 11 14 0.3 1.5 25000–40000 19–30

18 5.5 1.66 11 14 0.3 1.5 32000–45000 19–27

20 5.5 1.66 11 14 0.3 1.4 38000–55000 18–27

22 5.5 1.66 11 14 0.3 1.4 42000–66000 17–26

24 5.5 1.66 11 14 0.3 1.4 49000–76000 17–26

PACKAGE

The electrodes are packed in wooden boxes and wooden frame bottoms, and the joint holes are protected by a foam cover and bundled with a packing steel strip.

The electrode joints are packed in cartons, foam boxes or packed in large wooden boxes and bundled with baled steel strips.

When more than two electrode joints are installed in the same carton, the joints are separated by corrugated paper or foam plastic sheets.

When the electrode and the joint are integrally connected, the electrode joint hole and the joint are packaged with a foam cover, and then wrapped in a wooden box and a wooden frame, andBundled with baled steel strips.

Here is Shuoyuan New Material Technology which produces High Quality graphite electrode, we are professional High Power graphite electrode Manufacturer.

Company Contact:

• Posted By: HEBEI SHUOYUAN NEW MATERIAL TECHNOLOGY CO.,LTD

• Phone: 13613195972

• Address: FangDa Science Park, No. 369 Tianbao Street, Ningjin County, Hebei Province., Hnadan , Hebei , China

• Email:

• Business Description: Founded in 2010, Hebei Shuoyuan New Material Technology Co., Ltd. is located in Ningjin County, Hebei Province, close to the “Northern China Carbon Base” and Tianjin Port, with convenient transportation.

  Specializ ing in the production and sale of various types of high-quality carbon and graphite products, including: RP/HP/UHP graphite electrodes, graphite blocks, graphite sheets, graphite rods, graphite crucibles and other carbon products, can also be produced according to customer requirements.

  The company has advanced production equipment, complete facilities, advanced testing methods and professional team.

  Always put quality in the first place, from material selection to final machining, each process is strictly and quality-tested and controlled, and carefully create high-quality graphite products for customers.

  Treat each customer with sincerity, provide the best quality products to customers with the most reasonable price and the most perfect service, one cooperation and lifelong trust.
