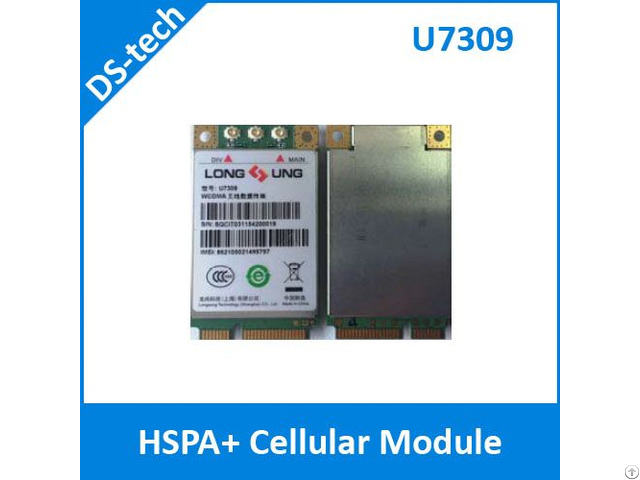

3g Wcdma Hsxpa Module U7309 - Taiwan

The U7309 is a Tri-Band HSPA+/WCDMA and Quad-Band EDGE/GPRS/GSM module solution which supports HSPA+ 14.4Mbps(downlink)and 5.76Mbps(uplink)for data transfer.

In areas where HSPA+ is not available, it still enable reliable and secure data connection over UMTS at speed up to 384 Kbps or EDGE at speed up to 237 Kbps or GPRS at speed up to 85.6 Kbps.

Except used as a standard wireless modem through AT command, It offers Audio(optional), SMS, MMS, Phonebook.

It is ideal for a wide range of products including Tablet, Gateway, Telematics, Tracking solution, Security solution and much more.

Band

* Tir-Band UMTS (HSPA+) 850/1900/2100 MHz

* Quad-Band GSM 850/900/1800/1900 MHz General Features

* Supply voltage range : 3.3V-4.2V

* Normal Operation : -20°C to +65°C

* Restricted Operation : -30°C to +75°C

* Storage Operation : -40°C to +85°C

* Dimension : 51.0 x 30.0 x 4.6 mm General features

* GPRS multi-slot class 12

* UMTS/HSPA+ 3GPP release 7

* GSM 3GPP release 99

* Output power: - Class 4 (2 W) for GSM900 - Class 3 (0.25 W) for UMTS - Class E2 (0.5 W) for EDGE900 - Class E2 (0.4 W) for EDGE1800 - Class 1 (1 W) for GSM1800

* Control via AT commands (Hayes 3GPP TS

27.007 and 27.005)

* SIM Application Toolkit (release 99)

*Power consumption: - Sleep mode <5mA - Power down 50 μA - Average Supply Current < 700mA Specifications for HSPA+ data

* HSPA+: Max.

14.4 Mbps (DL), 5.76 Mbps (UL)
