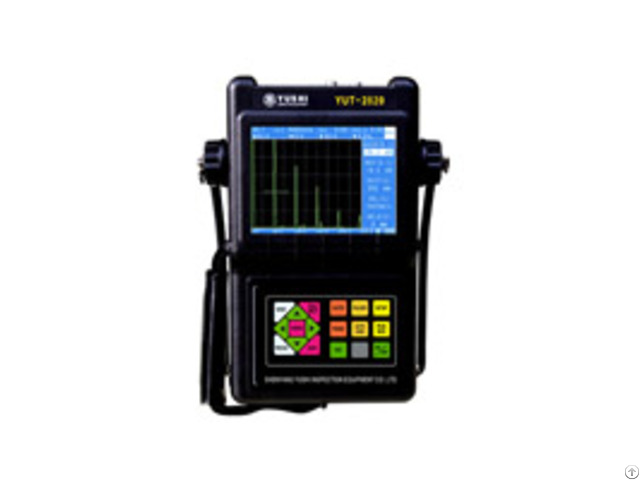

Yushi Yut28 Series Ultrasonic Flaw Detector Yut2820 - China

Φ Value Calculation: This function is used for calculating the flaw quivalent

Measuring Point: Peak Mode or Front Mode

Wave Crest Memory: Real time envelopes show the highest wave of the flaws and record the maximum value of the flaws, it is helpful to exact positioning and fast

Automatic Gain: Automatically adjust the gain to the preset amplitude height

Alarming Function: Afferent echo/echo loss alarming

Solid Waveform: The solid waveform can enhancing the waveform visual contrast so the omission will hardly happen during the fast testing

Real-time Clock: Automatically record the date and time of the stored waveforms

Display Freezing: Catching the waveform and sound path data at any moment

Flaw Positioning: Real-time displaying the sound path S, horizontal height X, depth Y, and wave height

Digital Inhibition: 0-80%, increasing by 1%, not affecting the linearity and gain

Independent Measurement: two independent measurement gates, monitoring the echo amplitude and the sound path distance

DAC/AVG Curve Functions: Perfect DAC curve functions enable the curves to change along with the changes of the gain, sound path, and displacement

Transverse Wave Testing Method: When using transverse wave to detect flaws, the depths of the second and third waves are automatically calculated according to the slab

Pulse Generator with Changeable Width and Scope: The voltage of the pulse generator can be changed between 50V to 400V continuously, The width of the pulse can be change d between 25ns to 1000ns continuously

Damping: Changed among 4 levels: 33/50/100/500Ω

Wave Signal Filter: Changed between 2 levels: 1-4MHz/0.5-15MHz

Repeating Frequency: Changed freely to avoid unreal signal

Languages: Chinese and English
