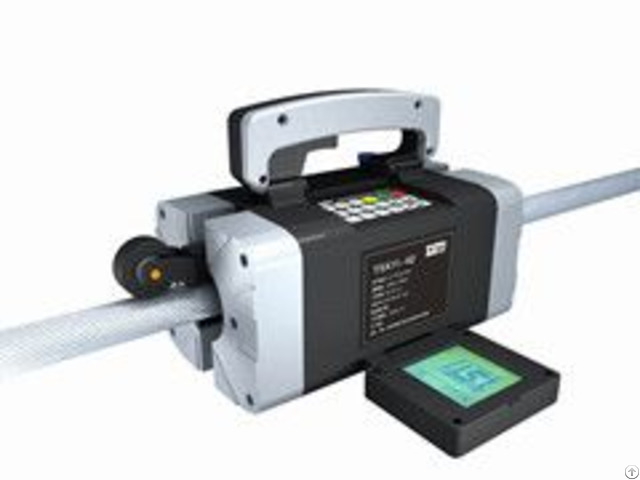

Wire Rope Ndt , Wire Rope Inspection , Wire Rope Testing (ts-x1142) - China

For the nondestructive inspection of wire rope with diameter from 10-80mm

Detection environment regulated with M-Regulator.

P;

Detection powered by WiSensor.

P;

Portable detection of various flaw types including broken wires, corrosion, pitting, abrasion, fatigue, etc

Instant monitoring and evaluation of detection with integrated Keypad and Screen

Built-in signal processor for portable application - InfoBridge.

P;

Built-in and PC software evaluating and reporting for portable application - T-Arithmatica.

P;

Product Specification/Models

TS-X1124 for Rope Diameter 6-24mm

TS-X1142 for Rope Diameter 22-42mm

TS-X1160 for Rope Diameter 40-65mm

TS-X1160x for Rope Diameter 40-70mm

Application

Mining Hoist, Civil Cranes, Ropeways, Port Cranes, Offshore Wire Ropes, Dragline Shovel, other wire rope sites.

Other Information

Inspection Speed: 0 - 3 m/s (or as limited for Safe Operation)

Flaw Signals: Broken wire, Abrasion, Corrosion, Fatigue signals complying with Internationa Standards

Flaw Detection:

99% Accuracy of Quantitative detection for flaw (LF, LMA) > 8%

95% Accuracy of Quantitative detection for flaw (LF, LMA) < 8 %

100% Repeatability of severe flaw signals

98% Repeatability of overall detected flaw signals

Quantitative detection of internal flaws such as internal broken wires & fatigue

Quantitative detection of external flaws such as broken wire, abrasion & corrosion

Company Contact:

• Posted By: TST Flaw Detection Technology Co., Ltd

• Phone: +8637960691009

• Address: 22 North Binhe Rd, High-Tech Development Zone,, Luoyang , Henan , China

• Email:

• Website: http://www.wireropetest.com/

• Business Description: TST Flaw Detection Technology Co., LTD (TST) incorporated in 2010 is specialized in designing, manufacturing and marketing the flaw detection systems for wire ropes and rope core conveyor belts.

  TST's mission is to continually develop flaw detection solutions for the safest wire rope operation and the most cost-efficient business outcome for wire rope and steel-cord conveyor belt users.

  With years of experience in the fields, TST realizes that the company's responsibility is not just a technical answer to safety inspection but a comprehensive business solution with full regards of people and environment, which means that our system must firstly be the keeper of the safe wire rope operations, furthermore our solution should be the enhancer for the business achievements and prosperity.
