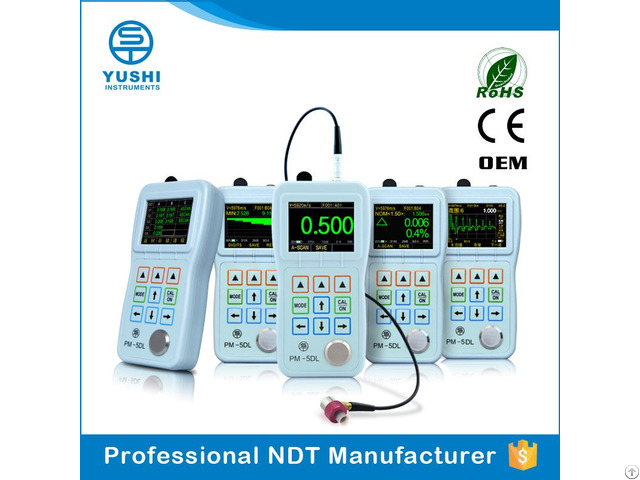

Ultra High Accuracy Portable Digital Oled Ultrasonic Thickness Gauge Meter - China
price: 2.00 Dollar US$
Display: 2.4QVGA(320×240)true color OLED screen, contrast 10000: 1
Measuring Modes
Interface-Echo Mode( I-E): for thick material
Echo-Echo Mode (E-E): for the thin material and measure through the coating
Multiple Echo Verify Mode (ME-E): All the thickness values have been checked through 3 to 9 times of echos, which makes the result more reliable and accurate
Auto Mode: The instrument select the measuring mode automatically according to the different material being tested
Measuring Range( Steel)
Interface-Echo Mode: 0.06''- 1.06''
Echo-Echo Mode: 0.06''- 0.53''
Multiple Echo Verify Mode: 0.01''- 0.35''
Auto Mode: 0.01''-1.06''
Display Mode
A-SCAN: Displays the whole RF echo or half-waveform after rectified
B-SCAN: Real time B-Scan, displays the profile of the workpiece
Big Thickness Value: The conventional display of the thickness value
Min.
/Max.
Capture: Display the current thickness value, Min.
value and Max.
value at the same time
Difference/Thickness thinning rate: Display the difference between the real thickness value and the preset thickness value, and the percentage of the thinning value
Gain: Real time continuously adjustable, adjustable range 41dB
Measuring Resolution: 0.0001inch
Material VelocityRange: 0.0197-0.39 37in/us
Units: Inch or Millimeter
Language: Chinese, English, French, Germany, Japanese
Power: 2 AA size batteries, Operating time is more than 35 hours
Working Temperature: 14°F ~122°F
Size: 6'' × 3'' ×1.5''(H ×W ×D)
Weight: 280g including batteries
Battery and Couplant are Prohibited Goods by Air
Shipping by DHL taking 3-5 days
Company Contact:
- Posted By: YUSHI ISTRUMENT
- Phone: +8618842591572
- Address: No.9 Shenbei Road, Shenbei District , shenyang , liaoning , China
- Email:
- Website: https://ysndt.en.alibaba.com
Published date: January 4, 2017
- Business Description: Ultrasonic Thickness Gauge, Leeb Hardness Tester, Ultrasonic Flaw Detector, Black-White Densitometer, LED X-Ray Film Viewer
