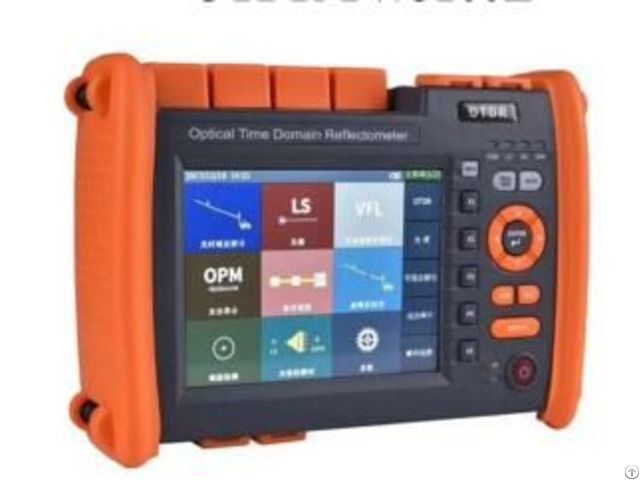

Techwin handhold tester series OTDR TW3100E for Trace Fixing

www dot techwin-china dot com

We will try our best to provide products similar to Yokogawa OTDR, Anritsu OTDR, EXFO OTDR, JDSU OTDR, Ideal Networks OTDR.

Introduction and Function of OTDR TW3100E：

• Automatic Measurement Mode: Only by selecting the measurement wavelength, the measurement parameters are automatically set, and the trace data is automatically saved and automatically analyzed.

• Multi-wavelength Measurement Mode: In the parameter setting, the wavelength can be automatically switched into the multi-wavelength measurement mode.

Under this mode, the analysis can be achieved on the attenuation state of the same fiber section under different wavelengths.

• Trace Fixing Function: It can achieve the same-screen comparison and display of one trace with another real-time trace or the trace under the average measurement, which is very useful for the installation of multi-core fiber or the checking of the aged fiber in the optical fiber network already been installed.

• Multi-wavelength Analysis Function: It can achieve the comparison, display and analysis functions of any trace file.

• FTTx online testing, able to identify the splitter and the fiber’s end.

• Large-capacity lithium-ion rechargeable battery, with the long standby time over 8 hours.

• Bellcore file format (.

sor), with the storage of greater than 10, 000 traces.

• Communication Light Detection: It can effectively protect the test instrumentation and communication equipments.

Techwin OTDR TW3100E’s Technical Specifications

• Linearity (dB/dB) : ±0.05 dB/ dB

• Loss threshold (dB) : 0.05

• Loss resolution ratio (dB) : 0.01

• Sampling resolution ratio(m): 0.125 to 8

• Sampling point : 32K

• Distance uncertainty (m) : ±(1 m + 5×10 -5 × distance + sampling interval)

• Distance scope (km) : 0.3 to180
