Standard Capsule Slip Ring 24 Ways For Rotary Tables - China

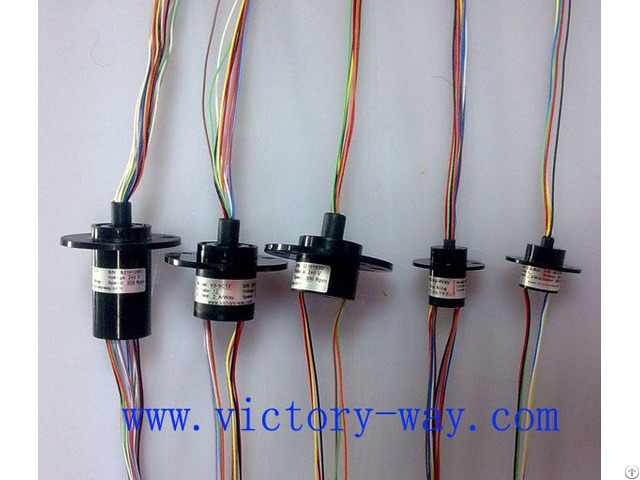

Standard capsule slip ring(24 ways)is a standard, off-the-shelf unit that uses gold contacts at the rotary interface.

Color-coded lead wires are used on both the stator and rotor to distinguish, with double contacts & double precision roller bearings, it utilizes 90°V-groove rings to provide smoother running, lower torque and lower electrical noise.

Flame-retardant plastic shell, 6, 12, and 24 circuit models for Power and /or signal.

A.

)Specification: Channels : 1~24 Ways Voltage : 240V AC/DC Current Rating : 2A/Ring Speed : 300PRM Insulation Resistance : 1000M?@500VDC Dielectric Strength : AC250V@60Hz, 60S Electrical Noise : 60 milliohms MAX @ 5~10 rpm, 50milliamps, 6V DC Lead Size/Type : AWG28 Sliver plated coppe, Type ET Teflon Lead Lengths : 250mm Operate Temp : -20℃～+80℃ Storage Temp : -30℃～+90℃ B.

)Feature:

Compact miniature design, small size, fit for harsh space;

Double precision roller bearings for lower torque & long life;

Signal and power can be combined to deliver in the same slip ring;

More installation flanges for option.

C.

)Application:

CCTV monitoring system;

Medical equipment;

Robots;

Laboratory equipment;

Revolving stage;

Smart Toys;

Rotary table.

D.

) Option:

Higher speed;

Metal shell;

Available connector and Heat-shrink tube;

Length of lead wires can be customized.
