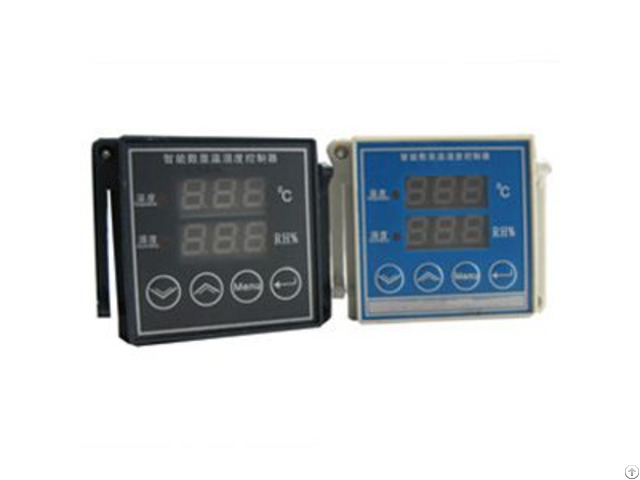

S W2 K2 Temperature Controller - China

Intelligent temperature controller with completed

FUZZY algorithm provides very precise of

temperature monitor.

FUZZY algorithm control fan

or heater to maintain sensible & latent capacity

follows temperature/humidity curve by

automatically.

Display unit can show environment temperature

and humidity as per configure by user.

The user

also can adjust environment condition very easily

Function & Feature

·DIN(48X48mm) Controller

·Indication and control accuracy 0.1℃, high measurement

·Heat/Cool control and PID control mode

·All settings except time maintained permanently in non-volatile memory until changed by user

·Built-in digital filter reduce interfere

·Self calibration technology, keep stabilization

·LED display show the data, prevent dazzle, highly visible display

·Simple 4-Button user interface

·Switching power supply and low consumption.

·Use large capacity relay

Specification

Power supply:

110/220VAC

(others on request) 24/48DC

Voltage range 80~110% rated voltage

Power consumption <5VA

Display:

2 line 7-segment LED display, 4 digital available

Display scale 1 digital after decimal point

Input:

Input route 2

Temperature sensor PT100 or customer request

Company Contact:

• Posted By: Chongqing Blue Jay Technology Co., Ltd

• Phone: (+0086) 023-67628702

• Address: JingYu Avenue No.153, Building 3A-13-25, Jiangbei District , 400020, Chongqing, P.R.China, chongqing , chongqing , China

• Email:

• Website: https://cqbluejay.com

• Business Description: Application:

  The MCM1000 Series provides a compact and robust metering solution, enable reliable monitoring of building electrical loads with a low installation cost-per-point by combining sub-metering.

  The unit performs real-time metering, measures energy consumption, multitariff time-of-use (TOU) and monitors power quality for max 18 channel circuits for single phase or 6 channel for three phase circuits.

  Advanced communications options including Modbus via RS485, I/O communications provide for extensive reliable data exchange.

  Multiple

  units can be connected together to meter unlimited number of circuits.

  The versatility of MCM1000 meters are ideal for multi-tenant or departmental metering applications within office towers, condominiums, apartment buildings, shopping centers and other multi-user environments.

  Features:

  ·Class 0.5 basic parameter and class 1 for active energy

  ·6 channels three phase or 18 channel single phase metering

  ·Current measuring .

  /5 or .

  /1 A (optional 333mV)

  ·Standard 35mm - 8 module DIN rail mounting

  ·Provide RS-485 MODBUS-RTU Communications

  ·Optional 6DI / 2DO for signal detect and remote control

  ·Optional external connection LCD screen, 96*96mm panel mount

  ·Optional TOU record for each monitor channel

  ·Accept customization design
