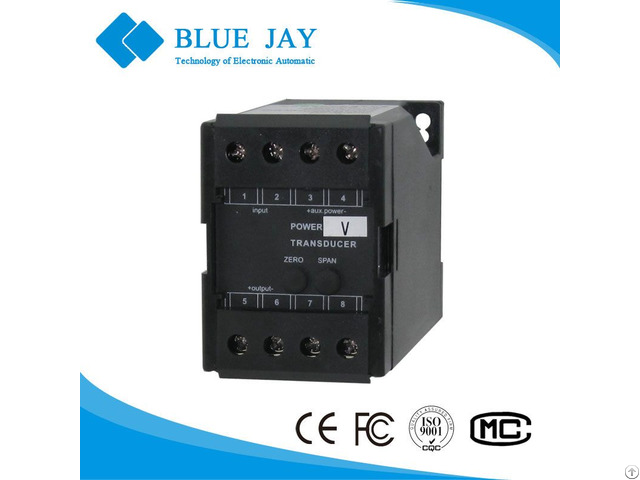

Qpv Ac Grid Transducer Single Phase For Din Mounting - China

Introduction DC grid transducer isolate the DC input signal from the DC output signal, which is directly proportional to the input signal.

These isolators can be used to prevent earth loops, which occur when a measuring source.

It have an advantage over loop powered units, in that if for any reason the output lead should become disconnected, the input will not be saturated.

With excellent temperature characteristic and good working stability.

QPV AC Grid Transducer Single phase for DIN mounting Main Features ·Input: DC grid customized input

·Output: 0-5V, 0-10V, 4-20mA, 0-20mA optional (One channel)

·0.2/0.5 measurement accuracy

·100ms response time(T type 1s/500ms)

·Minimum thickness of size (T type)

·35mm Din rail mounting

·Rs485 port optional

Company Contact:

• Posted By: Chongqing Blue Jay Technology Co., Ltd

• Phone: (+0086) 023-67628702

• Address: JingYu Avenue No.153, Building 3A-13-25, Jiangbei District , 400020, Chongqing, P.R.China, chongqing , chongqing , China

• Email:

• Website: https://cqbluejay.com

• Business Description: Application:

  The MCM1000 Series provides a compact and robust metering solution, enable reliable monitoring of building electrical loads with a low installation cost-per-point by combining sub-metering.

  The unit performs real-time metering, measures energy consumption, multitariff time-of-use (TOU) and monitors power quality for max 18 channel circuits for single phase or 6 channel for three phase circuits.

  Advanced communications options including Modbus via RS485, I/O communications provide for extensive reliable data exchange.

  Multiple

  units can be connected together to meter unlimited number of circuits.

  The versatility of MCM1000 meters are ideal for multi-tenant or departmental metering applications within office towers, condominiums, apartment buildings, shopping centers and other multi-user environments.

  Features:

  ·Class 0.5 basic parameter and class 1 for active energy

  ·6 channels three phase or 18 channel single phase metering

  ·Current measuring .

  /5 or .

  /1 A (optional 333mV)

  ·Standard 35mm - 8 module DIN rail mounting

  ·Provide RS-485 MODBUS-RTU Communications

  ·Optional 6DI / 2DO for signal detect and remote control

  ·Optional external connection LCD screen, 96*96mm panel mount

  ·Optional TOU record for each monitor channel

  ·Accept customization design
