Portable Spectrum Analyzer Tw4950 With High Peroformance Index - China

Product Overview

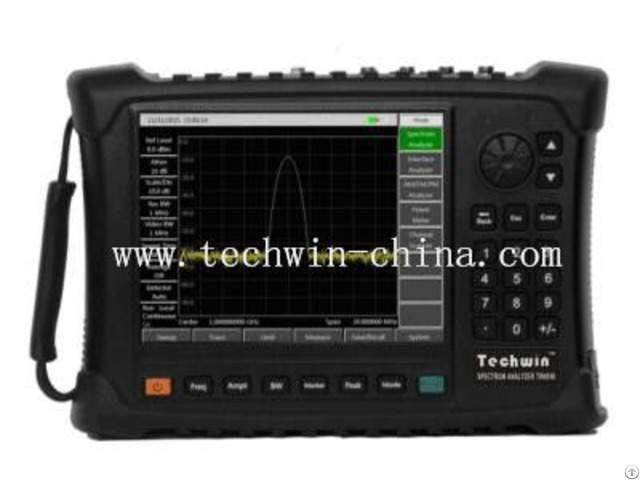

Techwin TW4950 series spectrum analyzer has many advantages: wide frequency range, high peroformance index, high sweep speed, various functions, and easy operation.

In terms of performance index, it has excellent displayed average noise level, low phase noise, and high sweep speed.

In terms of measurement functions, it has measurement functions of spectrum analyzer, inteference analyzer, AM/FM/PM analyzer, power meter, channel scanner etc.

as well as intelligent measurementfunctions of channel power, occupied bandwidth, adjacent-channel power ratio, tune&listen, emission mask, and carrier-to-noise ratio etc.

Techwin TW4950 apots the integrated design of 8.4 inch LCD and capative touch screen, which improves the display definition and operation convinience.

It is handheld, compact and light, with flexible power supply, which is very suitable for field work.

Techwin TW4950 can be used for signal and equipment test in the fields of aerospace, microwave & stallite communication, radio communication, radar monitoring, electronic countermeasures & reconnaissance, and precision guidance.

Main Characteristics:

Wide frequency range: from 9kHz to 44GHz, 4 models

Low displayed average noise level: -163dBm@1Hz RBW(typical)

Excellent phase noise performance: -106dBc/Hz@100kHz frequency

High sweep speed: for 1GHz span, shortest sweep time <20ms

Full-band pre-amplifier: standard configuration

Various measurement functions: spectrum analyzer, interference analyzer
