Multi Function Battery Monitor Meter - China

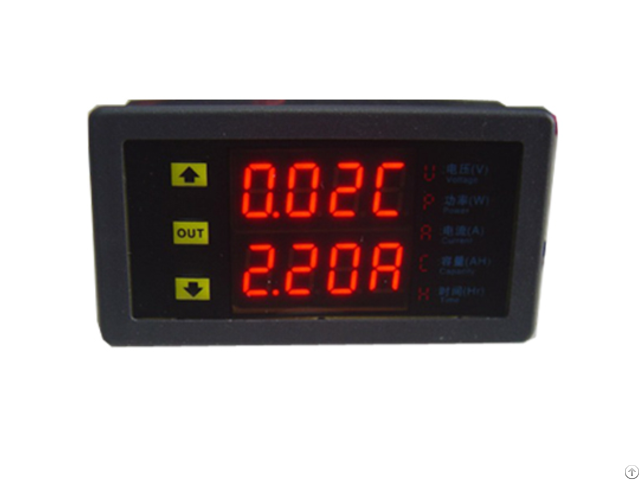

BM-MTX battery monitor meter is mainly used to measure the battery working condition data for different battery

specification.

With volt, amp, power, charge capacity, running time reading; User can free to set 6 type protection

modes for longer battery life

Features

- 4 and 1/2-digit LED display, show volt, amp in dual screen, can switch show power, charge capacity and running time

- With one key shutdown output function, easy for connect/disconnect load

- With on-line calibration function, the user can calibrate the voltage and current values

- Has over-voltage, low-voltage, over-current, over-power, over-charging and over-time protection function.

Technical Specification:

Max.

input voltage : 5V~40VDC (4010, 4020)

10V~75VDC (7510, 7520);

Max.

output current each channel : 0~10A (4010, 7510)

0~20A (4020, 7520);

Total 4 digit 7-segment LED display;

Sampling rate 5 times/sec;

Resolution : 0.01V, 0.01A, 0.01W, 0.01AH, 0.01H;

Mounting: panel mount, Indoor;

Company Contact:

• Posted By: Chongqing Blue Jay Technology Co., Ltd

• Phone: (+0086) 023-67628702

• Address: JingYu Avenue No.153, Building 3A-13-25, Jiangbei District , 400020, Chongqing, P.R.China, chongqing , chongqing , China

• Email:

• Website: https://cqbluejay.com

• Business Description: Application:

  The MCM1000 Series provides a compact and robust metering solution, enable reliable monitoring of building electrical loads with a low installation cost-per-point by combining sub-metering.

  The unit performs real-time metering, measures energy consumption, multitariff time-of-use (TOU) and monitors power quality for max 18 channel circuits for single phase or 6 channel for three phase circuits.

  Advanced communications options including Modbus via RS485, I/O communications provide for extensive reliable data exchange.

  Multiple

  units can be connected together to meter unlimited number of circuits.

  The versatility of MCM1000 meters are ideal for multi-tenant or departmental metering applications within office towers, condominiums, apartment buildings, shopping centers and other multi-user environments.

  Features:

  ·Class 0.5 basic parameter and class 1 for active energy

  ·6 channels three phase or 18 channel single phase metering

  ·Current measuring .

  /5 or .

  /1 A (optional 333mV)

  ·Standard 35mm - 8 module DIN rail mounting

  ·Provide RS-485 MODBUS-RTU Communications

  ·Optional 6DI / 2DO for signal detect and remote control

  ·Optional external connection LCD screen, 96*96mm panel mount

  ·Optional TOU record for each monitor channel

  ·Accept customization design
