Mtx105p Bidirectional Battery Status Detect - China

Description

Features

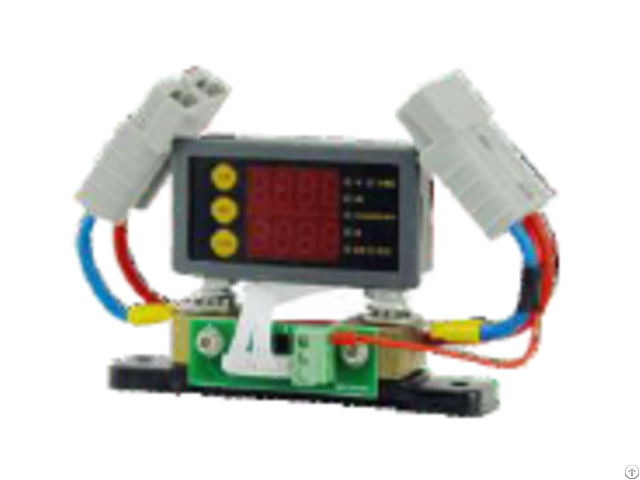

MTX105P

Bidirectional battery

status detect

MTX-105P is advanced battery monitor with dual-side metering function, do not need change the wiring in charging/discharging process.

have external connection board, can

work with different range current shunt, and easy wiring connection.

Mainly used for monitor the 12V/24V/48V solar system

battery working condition.

Same compact size as previous generation, MTX-105P show volt, amp, power, charge capacity, running time data, add battery type correction factor K, SOC(scale of charging) function, help user known the detail information of their battery.

·Dual-side metering, can show system charging

/ discharging current data.

·With two line LED display, show volt (V), amp

(A), power (W), amp-hours (AH), running hours

(H), battery capacity (%).

·Protect your batteries against deep discharge

·With on-line calibration function, the user can calibrate the voltage and current values easily.

·Use external shunt for amp data sampling, support up to 500A circuit measurement.

·User can free to set the measurement battery capacity, can used in variety types of battery systems.

Company Contact:

• Posted By: Chongqing Blue Jay Technology Co., Ltd

• Phone: (+0086) 023-67628702

• Address: JingYu Avenue No.153, Building 3A-13-25, Jiangbei District , 400020, Chongqing, P.R.China, chongqing , chongqing , China

• Email:

• Website: https://cqbluejay.com

• Business Description: Application:

  The MCM1000 Series provides a compact and robust metering solution, enable reliable monitoring of building electrical loads with a low installation cost-per-point by combining sub-metering.

  The unit performs real-time metering, measures energy consumption, multitariff time-of-use (TOU) and monitors power quality for max 18 channel circuits for single phase or 6 channel for three phase circuits.

  Advanced communications options including Modbus via RS485, I/O communications provide for extensive reliable data exchange.

  Multiple

  units can be connected together to meter unlimited number of circuits.

  The versatility of MCM1000 meters are ideal for multi-tenant or departmental metering applications within office towers, condominiums, apartment buildings, shopping centers and other multi-user environments.

  Features:

  ·Class 0.5 basic parameter and class 1 for active energy

  ·6 channels three phase or 18 channel single phase metering

  ·Current measuring .

  /5 or .

  /1 A (optional 333mV)

  ·Standard 35mm - 8 module DIN rail mounting

  ·Provide RS-485 MODBUS-RTU Communications

  ·Optional 6DI / 2DO for signal detect and remote control

  ·Optional external connection LCD screen, 96*96mm panel mount

  ·Optional TOU record for each monitor channel

  ·Accept customization design
