Mtx100 Battery Monitor Protector - China

Description

Typical wiring

MTX100

Battery monitor / protector

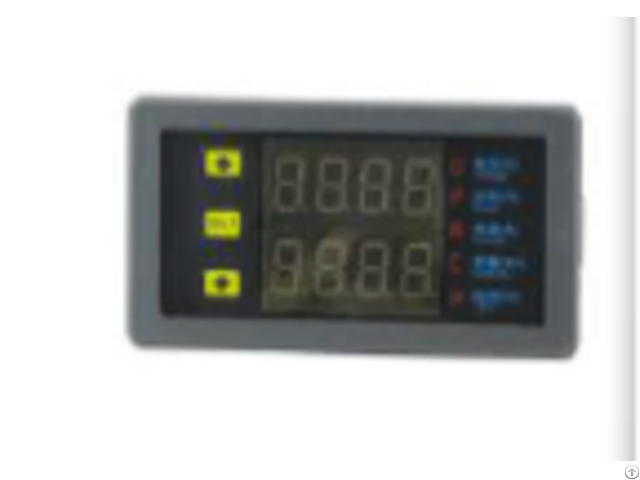

MTX-100 battery Meter is minimal size DC

meter, with built-in shunt, mainly used to measure the battery working condition data.

Two line high light LED display show volt, amp, power, charge capacity, running time data; help user known the detail information of their battery.

MTX100P type provide protection modes, user can free to set for six types of protection function, can prolong the battery life.

Technical characteristics

DC l o a d BATTERY

MTX100

+ Vext

-

3W

2W

-

-

+

IN

OUT

AUX DC l o a d BATTERY

1 2 ~ 6 0 V D C

MTX100P Main Features

MTX100 is a new-type voltage meter which can measure voltage, current, power, charging capacity and time at the same time.

The

voltage meter adopts two groups of LED digital tubes to display the

data.

The meter can switch the display among different physical

quantities.

This meter is ideal for monitoring the output voltage and

current, as well as the battery charge and discharge applications.

Advanced type MTX105P with dual channel monitor function, can

connect in DC circuit for long time continuous monitoring, In addition

to features of MTX100, connect with outside shunt for large current

metering, and SOC display function can real-time show the battery

capacity.

Mainly used to measure the battery working condition data

for different battery specification.

·DC ciruit electrical parameters monitor, a variety of parameter

especially suitable for battery system

·Two line LED screen, upper window display volt, power, running

time; lower window display amp, battery capacity and SOC

·Minimal installation size, panel mount suitable for many occasions

·Special funtion of different sub-model for different use:

MTX100 --- Basic monitor

MTX100P --- Protection type

MTX105P --- Large current detect

Automatic Power Factor Controller

Application

·Low voltage Battery charge and discharge process metering

·Recreational vehicles, forklifts, service vehicles

·Solar power systems

·Maritime application

·UPS backup systems

·Provide battery SOC display

10V~90VDC; two wire connection

0-90VDC; three wire connection

Current sampling 0~20A

Electrical parameters

Display type 7 segment 4 digits Red LED

Sampling rate 5 times per second

Accuracy Volt ± 1% + 2byte / Amp ± 2% + 5byte

Resolution 0.01V, 0.01A, 0.01W, 0.01Ah, 0.01H

OVP over voltage

OPP over power output

OCP over current output

OAH over charge

Ohr over time

Lop low voltage

Operation Temperature -10~50

Storage Temperature -20~60

Operation Humidity 0~90RH

Dimensions 79mm×43mm×25mm

Mounting size 76.5mm×39.2mm

Weight MTX100 80g / MTX100P 95g
