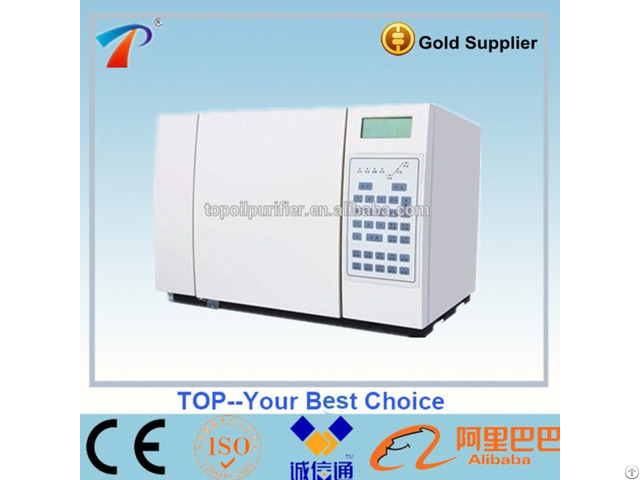

Most Competitive Transformer Oil Gas Chromatography Instrument - China

Main Features

1 - Large-screen LCD display; rich and intuitive displaying content; convenient to set parameters.

2 - Unique microcomputer automatic ignition device.

3 - Stable and reliable digital zero setting to avoid baseline instability caused by the zero setting of potentiometer.

4 - Have analysis acquisition automatic start function to seriously guarantee the synchronization of analysis and acquisition.

5 - Sample injector adopts ration card to guarantee accurate sample injection and good repeatability.

6 - Intelligent back pullout automatic cooling system with frequency conversion function; with fast cooling speed; achieve real near room temperature operation.

7 - Column adopts unique tracking temperature rising to avoid detector contamination caused by rapid heating of column chamber .

8 - With gas stopping/leaking protection and prompts functions; maximize the protection for TCD tungsten and column from damage.

9 - Temperature control adopts Multichannel Integration Solid-State Relay to make temperature control stable and reliable.

10 - Fault self-diagnosis function.

At any time to show failure cause and alarm indication.

11 - Adopt microcomputer control, keyboard setting, LCD display, with memory function.

12 - High performance detector and methanator.

The detection capability completely meet the Electric Power Ministry’s determination of gas component content in transformer oil.

13 - Adopt one injection, second diffluence column with quick analysis speed and good repeatability.

14 - Double hydrogen flame design to make low content hydrocarbons and high content CO, CO2 separately detected to avoid mutual interference.

15 - Adopt new type column packing material, double column temperature flow to make the C2H2 detection time quicker, sensitivity higher and analysis period shorter.

Technical Parameters

1 - Column chamber temperature: room temperature +5℃~420℃, temperature control accuracy ±0.1

2 - Detection chamber temperature: room temperature+15℃~420℃, temperature control accuracy ±0.1

3 - Reburner temperature: room temperature+15℃~420℃, temperature control accuracy ±0.1℃

4 - TCD sensitivity, min detection concentration for H2<2ppm, O2<5ppm, N2<10ppm

5 - FID detection concentration for hydrocarbons such as methane, ethylene, acetylene<0.1ppm; detection concentration for CO, CO2<2ppm.

6 - TCD sensitivity, S>3000mv.

ml/mg (benzene)
