Lpce 2 Lms 9000 Led Integrating Sphere With Ccd Spectroradiometer For Test Cri Lumen And Current - China

Introduction:

LPCE- 2( LMS- 9000) is high precision CCD Spectroradiometer & Integrating Sphere Test System, it is suitable for photometric and colorimetric measurement of luminaries such as Energy- saving lamps, Fluorescent lamps, HID lamps ( high voltage sodium lamps and high voltage mercury lamps) , CCFL and LED.

The measured data meets the requirements of CIE, EN and LM- 79 clause 9.1 for the measurement of photometry and colorimetry.

System Configuration:

High Precision CCD Spectroradiometer ( LMS- 9000A or LMS- 9000B) , Optical Fiber ( CFO- 1.5M) , Digital Power Meter ( UI2008R) , DC Power Source ( WP3005) , AC Power Source ( LSP- 500VA) , Integrating Sphere ( IS- 1.5M55P and IS- 0.3M) , Standard Light Source ( SLS- 50W and SLS- 20W) , Optical Path Converter ( LS512A) , 19 Inch Cabinet ( CASE- 19IN)

Measurements:

• Colorimetric: Chromaticity coordinates, CCT, Color Ratio, Peak Wavelength, Half Bandwidth, Dominant Wavelength, Color Purity, CRI, Spectrum Test

• Photometric: Luminous Flux, Luminous Efficiency, Radiant Power Efficiency, Pupil Factor, Cirtopic Flux

• Electrical: Voltage, Current, Power, Power Factor

Specifications:

• Spectral Range Wavelength: 380nm ~780nm ( Option: 380nm ~ 1050nm or 200nm ~ 780nm)

• Accuracy of wavelength: ±0.5nm

• Photometric linear: ±0.5%

• Time of integration: 0.1mS~20S

• Stray light: <0.015% ( 600nm) and <0.03% ( 435nm)

• Accuracy of chromaticity coordinate: ±0.0015 or ±0.0005( under standard illuminant A )

• Range of related color temperature measurement: 1000~100000k

• Accuracy of related color temperature: ±0.3% ( under standard illuminant A )

• Tolerance of color rendering index: ±( 0.3% ±0.3)

• Connect with PC via USB, English version software can be run under WinXP and Win7

Company Contact:

• Posted By: Lisun Instruments Limited

• Phone: 8618917996096

• Address: 113-114, No.1 Building, Nanxiang Zhidi Industry Pa, Shanghai , China

• Email:

• Website: https://www.lisungroup.com

• Business Description: LISUN INSTRUMENTS LIMITED was found by LISUN GROUP in 2003 - We have sales and service offices in China, Russia, India and Korea.

  In 2012, we built a high level products show room and accreditation lab in Shanghai.

  LISUN has setup a new manufactory in China to design & produce the lighting and electrical test instruments.

  Its quality system has been strictly certified by ISO9001: 2015 - As a CIE Membership, LISUN products are designed based on CIE, IEC and other international or national standards.

  All products passed CE certificate and authenticated by the third party lab.

  Our main products are Goniophotometer, Integrating Sphere, Spectroradiometer, LED Test Instruments, CFL Test Instruments, Photometer and Colorimeter, EMC & EMI Testing, Surge Generator, Electrical Safety Testing, Environmental Test Chamber, IP Waterproof Test Equipment, Dustproof Test Chamber, High and Low temperature Humidity Chamber, Plug and Switch Testing, AC and DC Power Supply.

  LISUN products have been sold to more than 150 countries and regions all over the world.

  Its quality is well accepted by many world famous companies such as UL, SGS, NIST, NIM, UNDP, Philips, OSRAM and so on.

  LISUN wins thousands of customers trust with motto “Right Product, Right Price and Right Service”.

  We will continue presenting more and more high quality products to our customers in the future.

  Our Products:

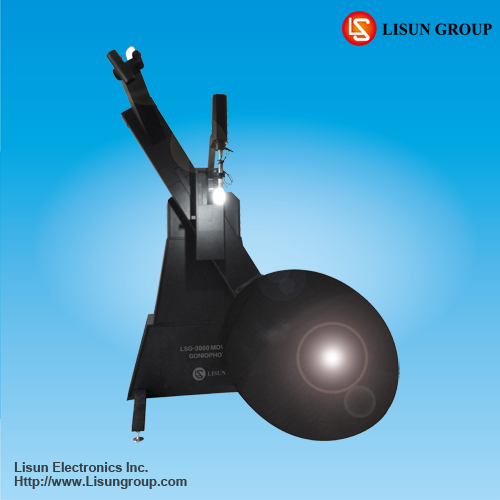

  - lsg 3000 laboratory goniophotometer photometric equipment test for ies standard of light
