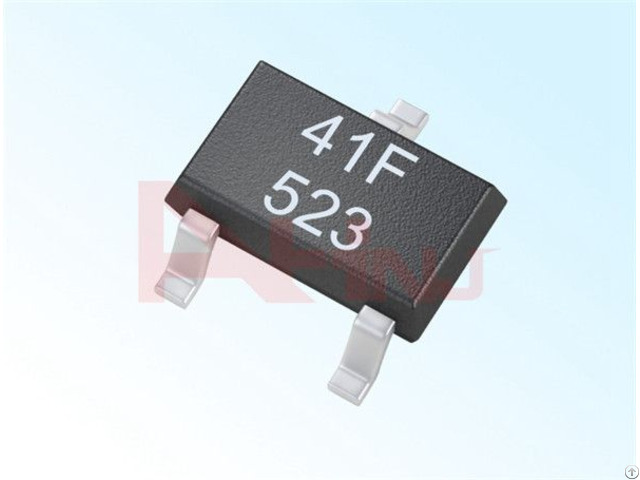

Latch Type Hall Sensor Ah3041 - China

Rated working voltage 4.5 V ~ 24 V, the limit voltages as low as 3.5 V;

Operating temperature range: -55℃ ~ 150℃;

Rated output current(sink) : 25 mA, the maximum output current(sink): 50 mA;

Switch response time is about 1μs, the operating frequency DC ~ 100 kHz;

Small temperature drift between operating point and release point;

No mechanical contact, no spark, switch signal stability, no shaking moment, high reliability and safety;

Products meet the EU RoHS instruction 2011/65 / EU and REACH regulations 1907/2006 / EU requirements.

Hall sensor AH3041 is one of bipolar excitation single-ended digital output Hall IC.

The output signal owns latch function.

The sensor chip has built-in reverse voltage protection, voltage regulators, temperature compensation circuit, Hall-voltage generator, signal amplifier, Schmitt trigger and open
