Jf100 Short Test Probe - China
price: 0.50 Dollar US$

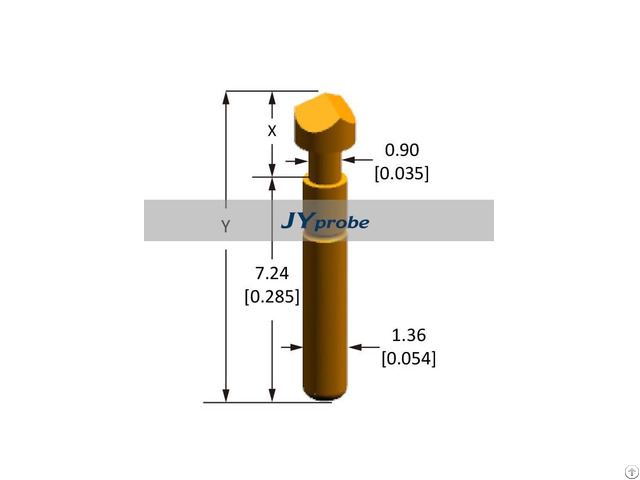

100mil short test probe and receptacles Mechanical& Electronical Specification
Pitch 2.54mm[ 0.100in]
Working Stroke 1.27mm[ 0.050in]
Full Stroke 1.52mm[ 0.0600in]
Spring Force 1N 1.5N Resistance Max.
50mOhm
Current 3Amp
Operated Temperature -40~125°C
Drilling Hole Size 1.702 - 1.753mm[.
0670 - 0690in] Material
Plunger SK4 or BeCu/ Au Plated
Spring Music Wire/ Au Plated
Tube Bronze/ Au Plated
Company Contact:
- Posted By: JY Electronics Technology Co Ltd
- Phone: 86-(0)21-3769 5886
- Address: No118, Lane 168 South Laiting Road,, Shanghai , China
- Email:
- Website: https://www.jyprobe.com
Published date: August 30, 2019
- Business Description: JianYang is dedicated to the success of our customers by being a world-classical provider of innovative spring contact probe (pogo pin) to the semiconductor test industry and spring contact probe to In-circuit test and Function test factory(OEM ODM).
JianYang, first established in 2008, offers a wide spectrum of spring contact probe (pogo pin), probe pins and services designed to meet the unique challenges of each customer.
As a leading provider of spring contact probe, we at JianYang are committed to delivering value added solutions through our product offerings and expert customer support.
