    • Ja050 Series Test Probe - China

    price: 0.50 Dollar US$

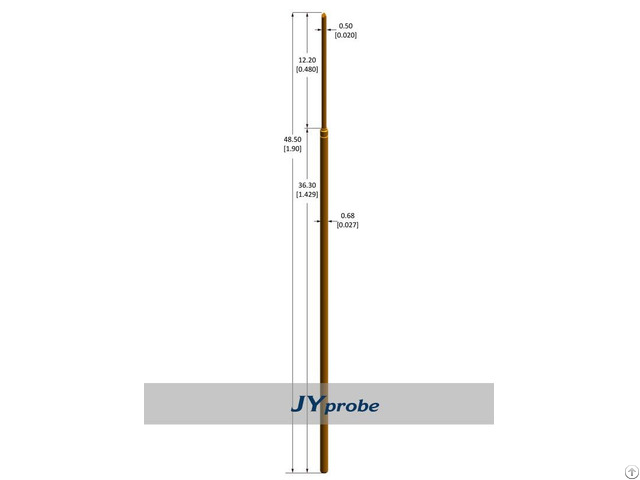

    Ja050 Series Test Probe

    Products Photos Catalog Ja050 Test Probe Photos Catalog

    50mil long test probe and receptacles Mechanical& Electronical Specification

    Pitch 1.27mm[ 0.050in]

    Working Stroke 8.00mm[ 0.315in]

    Full Stroke 10.00mm[ 0.394in]

    Spring Force 1N 1.5N

    Resistance Max.

    50mOhm

    Current 3Amp

    Operated Temperature -40~125°C

    Drilling Hole Size 0.970 - 0.990mm[.

    0382-.

    0390in] Material

    Plunger SK4 or BeCu/ Au Plated

    Spring Music Wire/ Au Plated

    Tube Bronze/ Au Plated


    Company Contact:


    • Phone: 86-(0)21-3769 5886

    • Address: No118, Lane 168 South Laiting Road,, Shanghai , China

    • Email: Email


    Published date: August 30, 2019

    • Business Description: JianYang is dedicated to the success of our customers by being a world-classical provider of innovative spring contact probe (pogo pin) to the semiconductor test industry and spring contact probe to In-circuit test and Function test factory(OEM ODM).

      JianYang, first established in 2008, offers a wide spectrum of spring contact probe (pogo pin), probe pins and services designed to meet the unique challenges of each customer.

      As a leading provider of spring contact probe, we at JianYang are committed to delivering value added solutions through our product offerings and expert customer support.
