    • J100 Test Probe And Receptacles - China

    price: 0.50 Dollar US$

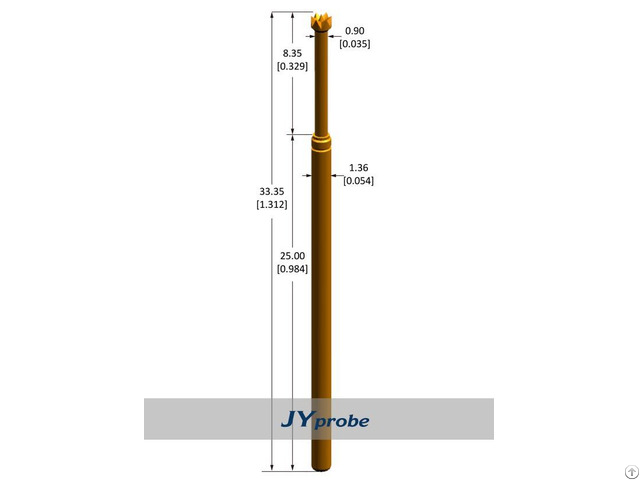

    J100 Test Probe And Receptacles

    Products Photos Catalog J100 Test Probe Photos Catalog

    100mil test probe and receptacles Mechanical& Electronical Specification

    Pitch 2.54mm[ 0.100in]

    Working Stroke 4.25mm[ 0.167in]

    Full Stroke 6.35mm[ 0.250in]

    Spring Force 1N 1.5N 2N 2.5N

    Resistance Max.

    50mOhm

    Current 3Amp

    Operated Temperature -40~125°C

    Drilling Hole Size 1.702 - 1.753mm[.

    0670 - 0690in] Material

    Plunger SK4 or BeCu/ Au Plated

    Spring Music Wire/ Au Plated

    Tube Bronze/ Au Plated


    Company Contact:


    • Phone: 86-(0)21-3769 5886

    • Address: No118, Lane 168 South Laiting Road,, Shanghai , China

    • Email: Email


    Published date: August 30, 2019

    • Business Description: JianYang is dedicated to the success of our customers by being a world-classical provider of innovative spring contact probe (pogo pin) to the semiconductor test industry and spring contact probe to In-circuit test and Function test factory(OEM ODM).

      JianYang, first established in 2008, offers a wide spectrum of spring contact probe (pogo pin), probe pins and services designed to meet the unique challenges of each customer.

      As a leading provider of spring contact probe, we at JianYang are committed to delivering value added solutions through our product offerings and expert customer support.
