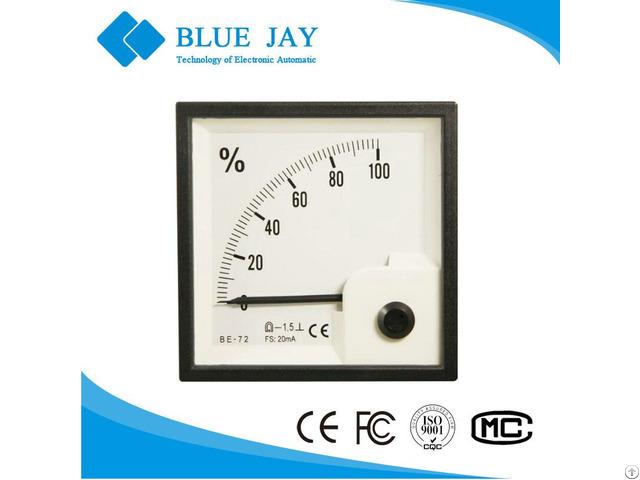

Industrial Universal Be 72 Dc20ma 100 Percent Current Load Meter - China

1 - Product description

Composition:

Glass window, ABS Resin frame and case, PC glass fiber base mounting fitting included.

Scale Plate: The normal scale plate is made of alloy-aluminium material white printed with black scales, Values, units, technique symbols, etc.

Scale plate with special requirements are available upon request.

Such as color, scale with lighting functions and PVC noctilucence are available upon request.

Color:

Black base and frame, white scale plate and meter body.

Pointer:

Normaly, the pointer is made of alloy-aluminium, it is black, and red, white are available Upon request.

Anti-static: All meters are subject to anti-static treatment to minimize the static-effect to the accuracy of the meters.

Damping and Overshoot:

The overshoot is less than 15% when the pointer is at the 2/3 of the scale.

Damping and overshoot can be customized according to user’s requirements.

Accuracy: Class1.5, 2.5; Service condition: -20~+50 degree; Operating position:

Generally, meter is installed in vertical position.

Other installation position can be customized (please specify the desired angle).

The accuracy class is just valid for the Corresponding installation mode.

Insulation Test: The test Voltage for BE&BP series is 2KV RMS for 1 minute with the frequency 50Hz.

Company Contact:

• Posted By: Chongqing Blue Jay Technology Co., Ltd

• Phone: (+0086) 023-67628702

• Address: JingYu Avenue No.153, Building 3A-13-25, Jiangbei District , 400020, Chongqing, P.R.China, chongqing , chongqing , China

• Email:

• Website: https://cqbluejay.com

• Business Description: Application:

  The MCM1000 Series provides a compact and robust metering solution, enable reliable monitoring of building electrical loads with a low installation cost-per-point by combining sub-metering.

  The unit performs real-time metering, measures energy consumption, multitariff time-of-use (TOU) and monitors power quality for max 18 channel circuits for single phase or 6 channel for three phase circuits.

  Advanced communications options including Modbus via RS485, I/O communications provide for extensive reliable data exchange.

  Multiple

  units can be connected together to meter unlimited number of circuits.

  The versatility of MCM1000 meters are ideal for multi-tenant or departmental metering applications within office towers, condominiums, apartment buildings, shopping centers and other multi-user environments.

  Features:

  ·Class 0.5 basic parameter and class 1 for active energy

  ·6 channels three phase or 18 channel single phase metering

  ·Current measuring .

  /5 or .

  /1 A (optional 333mV)

  ·Standard 35mm - 8 module DIN rail mounting

  ·Provide RS-485 MODBUS-RTU Communications

  ·Optional 6DI / 2DO for signal detect and remote control

  ·Optional external connection LCD screen, 96*96mm panel mount

  ·Optional TOU record for each monitor channel

  ·Accept customization design
