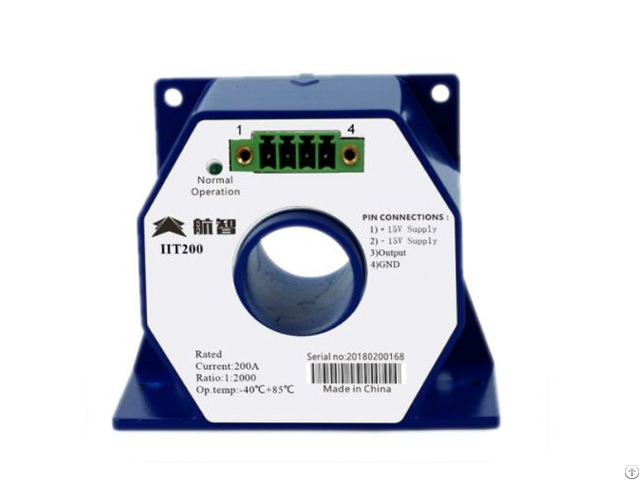

Iit200 Industrial Grade Current Sensor Transducer - China
price: 399.00 Dollar US$
IIT200 has a high gain and measurement accuracy in the full bandwidth range, due to the application of the
multi-point zero-flux technology system and high-frequency ripple sensing channel on top of currently existing
DC sensor technology.
Primary Nominal Current: DC200A, AC141A, Overload Capacity: DC240A for 1 minute, Power Supply: DC14.2V to 15.8V, Ratio: 2000: 1, Secondary Burden Resistance: 10 ~ 25Ω, Accuracy: 0.02%, Linearity: 20ppm, Current Change Rate: 200A/us, Frequency bandwidth(-3dB): up to 100KHz, Insulation Voltage (Between primary and secondary): 5KV, Operation Temperature Range: -40 ~ 85℃.
Company Contact:
- Phone: +86 755 82593440
- Address: Room 330, Building B, Huayuan Hi-tech Pioneer Park, Baoyuan Rd, Bao An District, ShenZhen, Guangdong, shenzhen , guangdong , China
- Email:
- Website: https://www.hangzhiprecision.com/
Published date: August 2, 2024
- Business Description: Shenzhen Hangzhi Precision Electronics Co., Ltd was founded in October 2017 - Hangzhi located in Shenzhen, design and manufacture a wide range of high precision AC DC current transducers, voltage transducers and testers to meet the needs of different industries, such as medical, railway, renewable energy, EV/HEV charging stand and calibration & testing etc.
Our products are based on fluxgate technology and have the characteristics of high precision, low zero drift, low temperature drift and full range.
