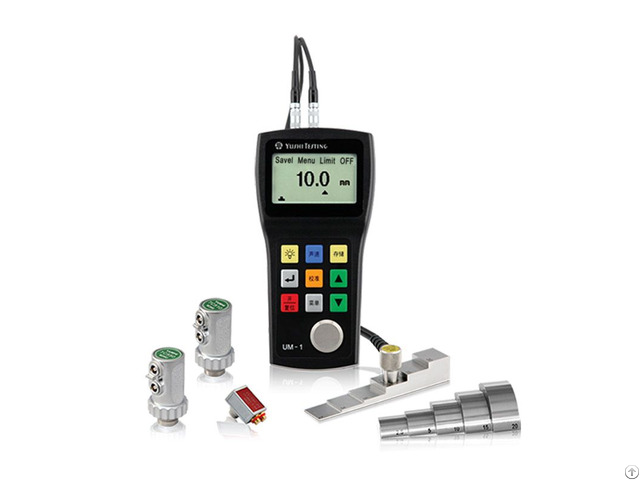

Handheld Portable Ultrasonic Thickness Gauge Tester Meter 0 03 To 12 W Pt 08 Probe Transducer - China
price: 631.00 Dollar US$
YUSHI INSTRUMENTS：We Are Manufacturer
20 years NDT experience, ISO, CE & RoHS certificated, this is how we keep superior quality and competitive offers for global valued customers
This instrument can be widely used in the fields such as manufacturing, metal processing, chemistry and business inspecting for measuring the thickness of all sorts of materials where ultrasonic wave can spread through with a constant speed and get the reflection from the back side
Operating Principle: P-E (pulse-echo) or E-E (echo-echo) with dual-crystal probes
Measuring Range: 0.03'' to 12'' in standard mode, 0.12'' to 0.79'' in coating mode
Storage: 5 arrays are divided to store 500 thickness values
Repeatability: 0.001''
Display Resolution: 0.001inch
Units: Inch or Millimeter
Update Rate: 4Hz
Material Velocity Range: 0.0394 to 0.3937in/μs
Measuring Limits of Tube(Steel):
Φ20mm × 3.0mm (PT-08 probe)
Φ15mm × 2.0mm (PT-06 probe)
The measuring error is up to ± 0.001''
Measuring Error:
Low limit to 0.4'': ±0.004''
0.4'' to high limit: ± ± (1%H+0.001) inch
Note: H is the actual thickness of the testing material
Operating Time: Up to 200 hours with alkaline batteries (without backlight)
Instrument Shut-off: AUTO OFF after 5 minutes of inactivity
Power Requirements: Two 1.5V AA alkaline batteries (Warning with low battery voltage)
Operating Temperature: 14°F to 122°F, 4°F in special requirements
Size: 5.8'' X 2.9'' X 1.3''(H X W X D)
Weight: 7.4oz including batteries
Battery and Couplant are Prohibited Goods by Air
Shipping by DHL taking 3-5 days
What’s in the BOX?
1*Main Unit, 1*Probe, 1 * Carrying Case, 1* User Manual
Company Contact:
- Posted By: YUSHI ISTRUMENT
- Phone: +8618842591572
- Address: No.9 Shenbei Road, Shenbei District , shenyang , liaoning , China
- Email:
- Website: https://ysndt.en.alibaba.com
Published date: January 4, 2017 - Modified date: January 4, 2017
- Business Description: Ultrasonic Thickness Gauge, Leeb Hardness Tester, Ultrasonic Flaw Detector, Black-White Densitometer, LED X-Ray Film Viewer
