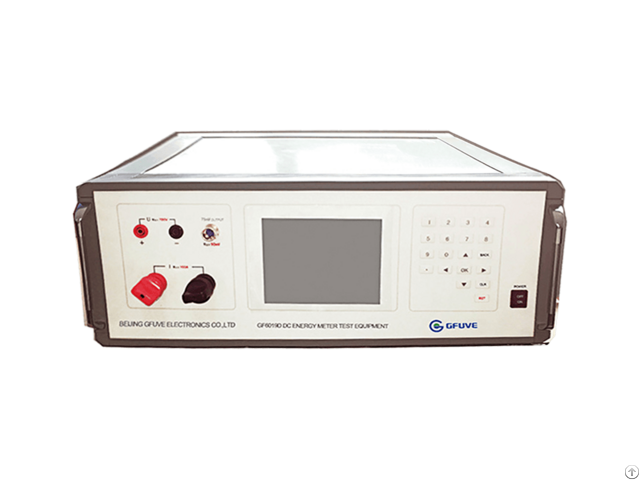

Gf6019d High Precision Dc Energy Meter Test Equipment - China

The GF6019D high precision DC energy meter test equipment consists of an DC voltage standard source, DC current standard source and DC power source.

(up to 1150V/600A) and built-in DC electronic reference standard of accuracy class 0.05%.

Characteristic features of the GF6019D are its wide measuring range, high accuracy and high tolerance to unwanted external influences.

The equipment offers high functionality combined with an excellent menu guided operation via built-in keyboards and colored 8" LCD-display.

It can test DC energy meter basic error, starting test, creep test, error of time of day.

FEATURES

■ 0-600A/0-1150V; ■ 8 inch TFT touch screen; ■ DC power source integrated; ■ Test by automatic or manual; ■ Accuracy class 0.05 or 0.02; ■ Start testing and creep testing; ■ Recorder 10000 sets energy meter data; ■ Overload, short circuit, open circuit protection;

FUNCTIONS

■ User friendly menu guided operation; ■ DC current source and DC voltage source; ■ Easy verification and analysis of DC meter; ■ Testing all kinds of DC ammeter, DC voltmeter; ■ Automatic operation without need of an external PC; ■ Testing all kinds of DC energy meter, DC power meter; ■ Especially configured USB stick for storage of customer data; FEATURES
