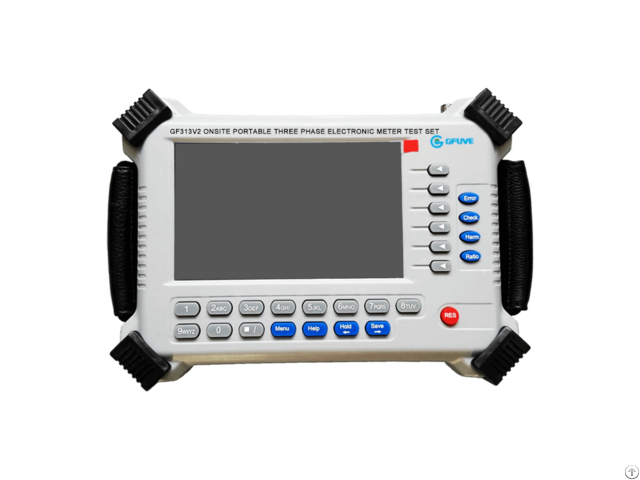

Gf313v2 Onsite Portable Three Phase Electronic Meter Test Set - China

GF313V2 onsite portable three phase electronic meter test set is the newest product produced by our company by widely visiting users and referring to the advantages of the same kind of products home and abroad.

The measured part of the product adopts high speed A/D transmission to send DSP to conduct digital processing, which largely improves measured degree of accuracy and stability.

Central processing part adopts 32-bit ARM embedded technology to make instrument interface novel, function abundant, operation distinct and easy, and performance steady.

Class of accuracy: Class 0.1, 0.2 or 0.5, range from 3×120A/3×600V or 3×200A/3×600V, with comfort design, small size and light weight.

The model GF313V2 three phase meter meter test set is suit for metrological service of electricity power utilities, industrial and mining enterprises and electric lab to field use.

FEATURES

■ Vector display; ■ Screenshot function; ■ Self adjusted clamp-on CTs; ■ 7 inch color TFT touch LCD; ■ Measurement for energy register; ■ RS232 port for PC software control; ■ Accuracy class: 0.1%, 0.2% or 0.5%; ■ USB and RS232 communication ports; ■ Measurement of clock error of energy meter; ■ Measurement of turn ratio & phase error for CT; ■ Large capacity storage device for mass memory; ■ Automatic temperature compensation technology; ■ Measurement of three phase energy meter errors; ■ Testing comprehensive error of measuring device; ■ 100A, 200A, 500A, 1000A, 2000A, 3000A clamp optional; ■ Measurement of single phase energy meter errors onsite; ■ Measurement voltage & current of harmonics of 2nd to 63rd; ■ Power supply (lithium battery)/ 85-265V AC /U1Un (40-450V); ■ Check wiring failures and calculation of electricity compensation; ■ Testing all kinds of mechanical and electronic energy meter error; ■ Measurement of U, I, P, Q, S, phase angle, power factor, frequency etc; ■ Input two pulse signal for master and slave meter synchronously calibration; ■ With smart optical sampler, suitable for electronic meters and mechanical energy meters;

APPLICATION

■ Power plant; ■ Electricity power utilities; ■ Metrological service center; ■ Power engineering company; ■ Distribution power corporation; ■ Electrical engineering service company; ■ Electricity power bureau & power company; ■ National Metrology and testing department; ■ Electrical Department of industrial and mining enterprises;
