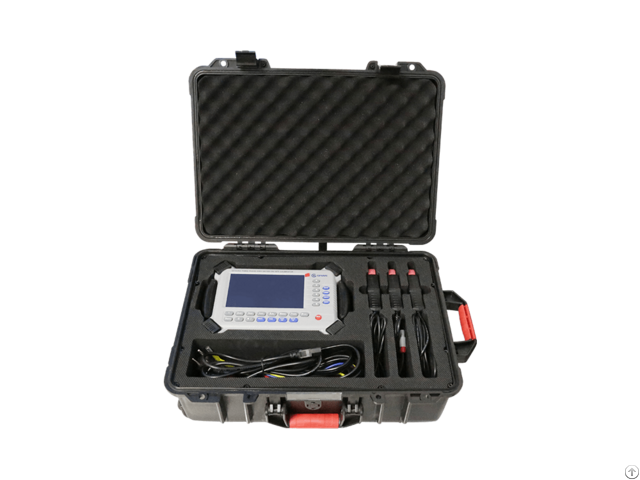

Gf312v2 Portable Three Phase Multifunction Watt Hour Meter Calibrator - China

GF312V2 portable three phase multifunction watt-hour meter calibrator on-site is the newest product produced by our company by widely visiting users and referring to the advantages of the same kind of products home and abroad.

The measured part of the product adopts high speed A/D transmission to send DSP to conduct digital processing, which largely improves measured degree of accuracy and stability.

Central processing part adopts 32-bit ARM embedded technology to make instrument interface novel, function abundant, operation distinct and easy, and performance steady.

Class of accuracy: Class 0.02, 0.05 or 0.1, range from 12A/600V or 120A/600V, with comfort design, small size and light weight.

The model GF312V2 watt-hour meter calibrator is suit for electric power departments, measuring and quality examining departments and electric lab to field use.

FEATURES

■ Screen capture function; ■ 7 inch color TFT touch LCD; ■ Self adjusted clamp-on CTs; ■ Accuracy class: 0.05%, 0.1%; ■ Measurement for energy register; ■ RS232 port for PC software control; ■ Measurement of energy meter errors; ■ USB and RS232 communication ports; ■ Measurement of clock error of energy meter); ■ Large capacity storage device for mass memory; ■ Measurement of turn ratio & phase error for CT; ■ Measurement voltage & current of harmonics of 2nd to 51st; ■ Power supply (lithium battery)/ 85-265V AC /U1Un (40-450V); ■ Check wiring failures and calculation of electricity compensation; ■ Measurement of U, I, P, Q, S, phase angle, power factor, frequency etc; ■ Input two pulse signal for master and slave meter synchronously calibration; APPLICATION

■ Power plant; ■ Electrical laboratory; ■ Energy meter factory; ■ Metrological service center; ■ Power engineering company; ■ Distribution power corporation; ■ Electricity power bureau & power company; ■ National Metrology and testing department; ■ Electrical Department of industrial and mining enterprises;
